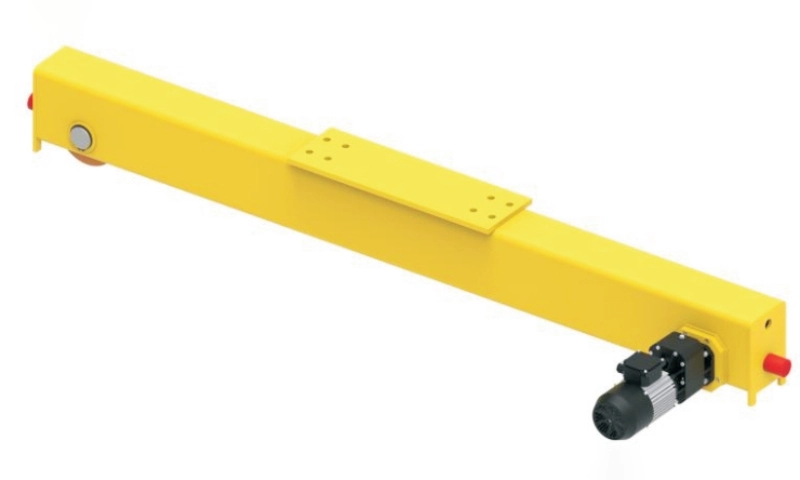

Crane End Carriage for Sale,Wholesale
Nucleon produces end beam devices (including drive devices), which are processed as a whole and have good interchangeability; they have a high degree of serialization and good adaptability.
Motor voltage and frequency: 380V~415V50Hz, 440V~500V60Hz
Travel speed(m/min): 10,20,30,Other
Number of driving wheels: Single wheel drive, Two-wheel drive
Wheel diameter: 20=200mm
Introduction

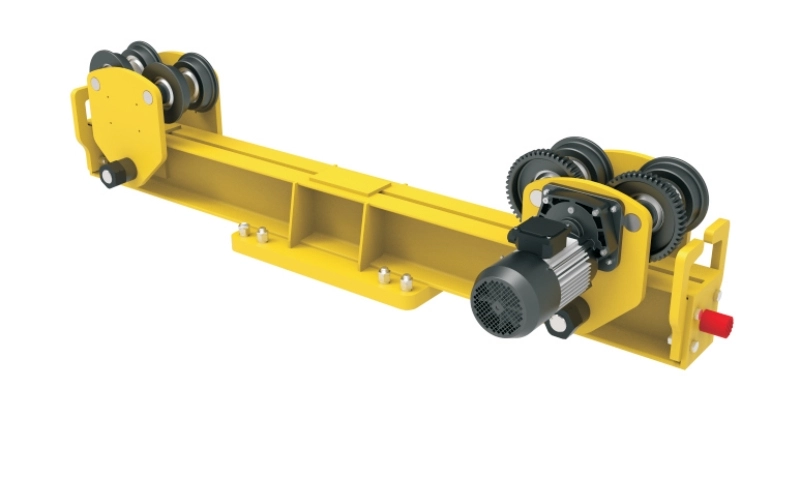

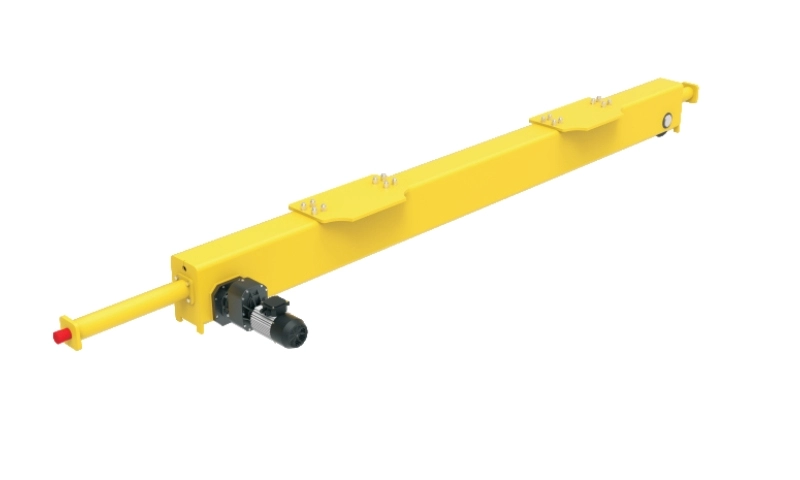

The end beams are divided into: single beam crane end beams, electric suspension crane end beams and double beam crane end beams.
Our crane end beams are available in a variety of design options, offering a high degree of flexibility and ensuring reliable operation. These compact, modular rail-mounted running gear mount directly to crane girders and load-bearing structures. Consisting primarily of torsion-resistant box sections and full running gear, our end beams can be flexibly configured to suit a wide range of load capacities. This comprehensive solution meets special application requirements for safe lifting and mechanical travel movements without damaging the rails.
![Crane End Carriage for Sale,Wholesale 1](/dm-content/uploads/2023/04/eot-end-carriages.webp)
Specification
Position | Code | Describe | Parameter | ||
1 | NEC20 | Endcarriagetypeandwheel diameter | NEC=NUCLEONEndcarriage Wheel diameter 20=200mm | ||
2 | B | Description | A | HD Type Electric Single Girder Overhead Crane | |
B | NLH Type Double Girder Overhead Crane with Electric Hoist | ||||
C | NLX Type Electric Single Girder Suspension Crane | ||||
3 | S | Number of driving wheels | S | Single wheel drive | |
D | Two-wheel drive | ||||
4 | WB | Wheel base(100mm) | NEC16AS20,25,30,35 NEC25BS363840 NEC20AS20,25,30,35 NEC25BD16 NEC20BS3640 NEC31BD18 NEC20BD16 NEC13CS101520 NEC15CS101520 | ||
5 | W | Groove width | NEC16AS70,90 NEC25BS100 NEC20AS70,90 NEC25BD100 NEC20BS90 NEC31BD100 NEC20BD90 NEC13CS22a-45b NEC15CS32a-63c | ||
6 | T | Joint plate length | NEC16AS65,75 NEC20AS65,75 NEC20BS6070 NEC31BD8085 NEC20BD7080 NEC13CS394449 NEC25BS7080 NEC15CS44586368 NEC25BD7080 | ||
7 | K | Motor voltage&frequency | A | 380V~415V50Hz | |
B | 440V~500V60Hz | ||||
8 | V | Travel speed(m/min) | A | 10 | |
B | 20 | ||||
D | 30 | ||||
C | Other | ||||
9 | Z | Option | N | N=Standard | |
E | E=Special Production |
Feature
Our crane end beams are available in a variety of design options, offering a high degree of flexibility and ensuring reliable operation.
The rail-mounted traveling gear can be mounted directly to the crane girder and load-bearing structure.
Mainly composed of twist-resistant box profiles and a full set of running gear, it can be flexibly configured to suit various load capacities.
It can meet various special application requirements of safe lifting and mechanical walking motion without damaging the track.
Case:
FAQ:
01Which standard of your crane and crane components apply to?
Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
02What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
