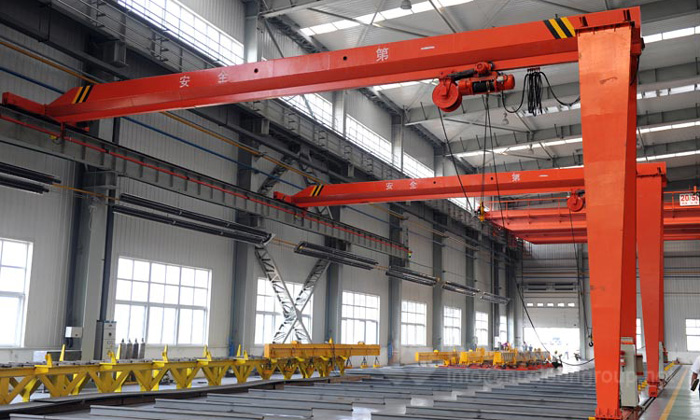

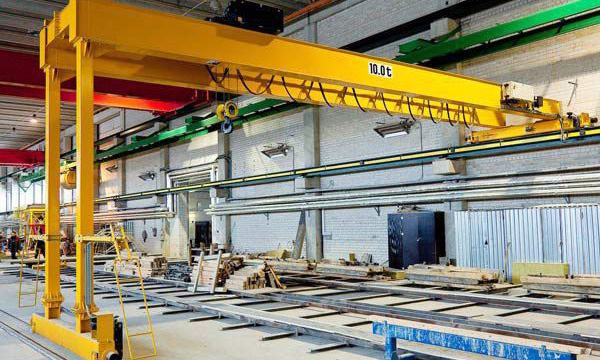

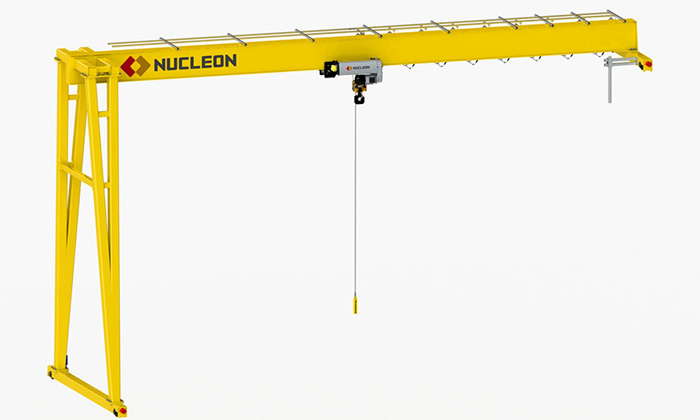

BMH Electric Hoist Semi-gantry Crane

Introduction

BMH Electric hoist semi-gantry cranes operate in the form of wireless remote controls, wired ground controls and control room controls. The electric hoist semi-gantry crane is a general-purpose crane. It is mostly used in general machinery manufacturing, assembly workshops, warehouses and other places for handling and loading and unloading materials. It is often used in outdoor and open places. And it is used together with CD1, MD1 model electric hoists, which is a small and medium-sized gantry crane travelling on tracks.

BMH Electric Hoist Semi-gantry Crane

Specification

Lifting capacity			t	10
span			m	5	11	14	17
Track height			m	6
Traveling mechanismg	Travelling Speed		m/min	20/30
	Motor	Ordinary	kW	ZDY(D)1,22-4/1.5*2
		Soft Start	kW	YDE90L-04(D)/1.5kW*2
	Reducer			LDA1, LDAC1			LDH, LDHC
	Wheel Diameter		mm	φ270			φ400
Electrical hoist	Type			CD1, MD1
	Lifting Speed		m/min	7 0.7/7
	Travelling Speed		m/min	20/30
	Motor	Lifting	kW	ZD151-4/13, ZDS1 2.2/13
		Travelling	kW	ZDY121-4/0.8*2
Working system				A4
Steel track recommended				P38
Power source				Three phase. AC 380V 50HZ
The Crane Weight			t	3815	4700	5550	6850
Max Wheel Load			KN	63.9	66.2	68.2	72.5
Basic Dimensions		H	mm	4185	4185	4185	4190
		H1		735	735	835	910
		H2		1670
		H3		1815	1815	1815	1815
		B		2600			2900
		B1		1800			1800
		B2		2000	2000	2000	2500

Feature

Applicable working environment of this kind semi-gantry crane is -20 ℃ - +40 ℃.

Two control forms: ground control and remote control.

Electric hoist semi-gantry cranes should not work in flammable and explosive media or places with high humidity and corrosive gases.

It also does not apply to the work of lifting molten metals, poisons, and combustibles.

The electric hoist semi-gantry crane is a general-purpose crane. It is mostly used in general machinery manufacturing, assembly workshops, warehouses and other places for handling and loading and unloading materials.

It is often used in outdoor and open places.
