Introduction

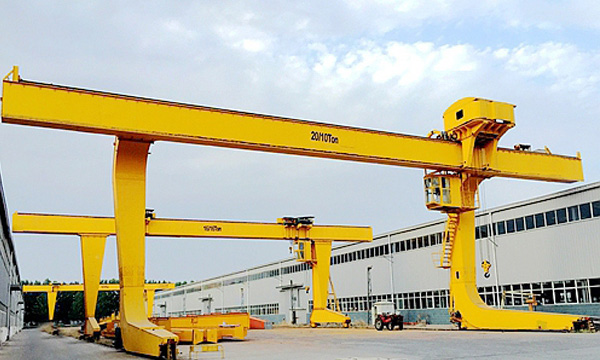

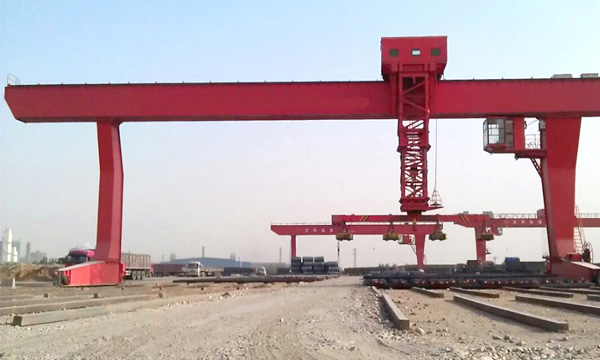

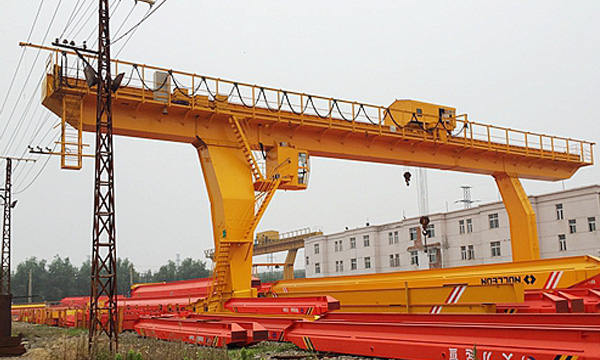

L type single girder gantry crane with hook is applied for handling and convey operation outdoors, or at warehouse, stock ground, railway station, sea port cargo area, etc. This single girder gantry crane can also be used to do some special operations with a variety of special spreaders. L type Single Girder Gantry Crane is widely used in metallurgy, hydropower, aerospace, shipbuilding, automotive, coal, petrochemical and other industries. This single girder gantry crane is equipped with closed cab, and there is cabs with heat preservation for selection. The L type gantry crane has the features of easy installation, big clearance, good operation vison, integrated console control and reasonable whole institutional arrangement.
![L type Single Girder Gantry Crane with Hook 1](/dm-content/uploads/2022/08/ff62be642978da8094799be24d7bedde.jpg)

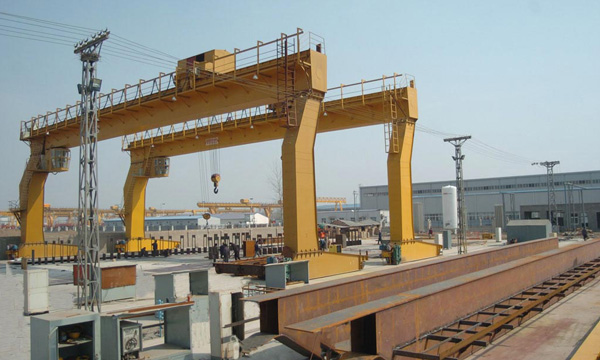

L type Single Girder Gantry Crane with Hook
Specification
Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 |
Span | S(m) | 18m~35m | |||||
Lifting height | m | 16m~50m | |||||
Lifting speed | m/min | 11m/min~6m/min | |||||
Trolley speed | m/min | 36m/min~39m/min | |||||
Crane speed | m/min | 39m/min~46m/min | |||||
Work duty | A5 | ||||||
Track | P43~QU80 |
Feature
Components standardization, seriation and generalization;
The bridge adopts box-welded structure, and trolley travelling mechanism is driven separately.
All the mechanisms are operated inside the operating room.
The conductive form is divided into two types of cables and trolley lines, users can select according to needs.
To purchase the crane, please fill out the order specification table, indicating the minimum temperature and maximum temperature of the working environment and the type of power supply.
Customized according to the users' needs of working environment, types of power source and the other technical requirements. Also design and manufacture span according to users' requirements.
Good operation vision of cab, equipped the internal linkage control console, flexible and comfortable operation, install of fan, heater, cooler, air-conditions and intercom according to the customers' requirements;
