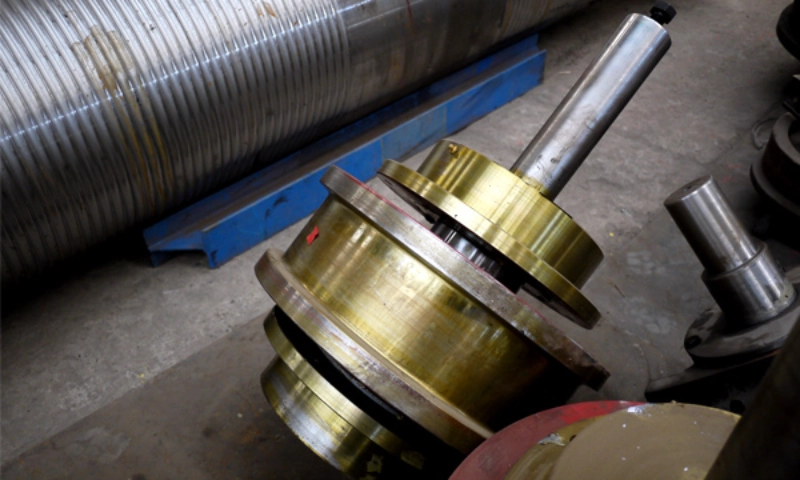

![Crane wheel 1](/dm-content/uploads/2023/04/train-wheel-design-diagram_w_800px.webp)

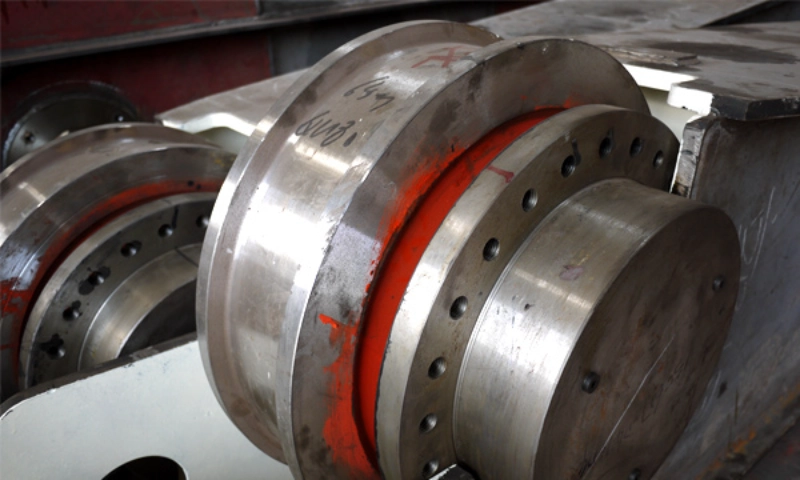

![Crane wheel 2](/dm-content/uploads/2023/04/rail-wheel-design-diagram_w_800px.webp)

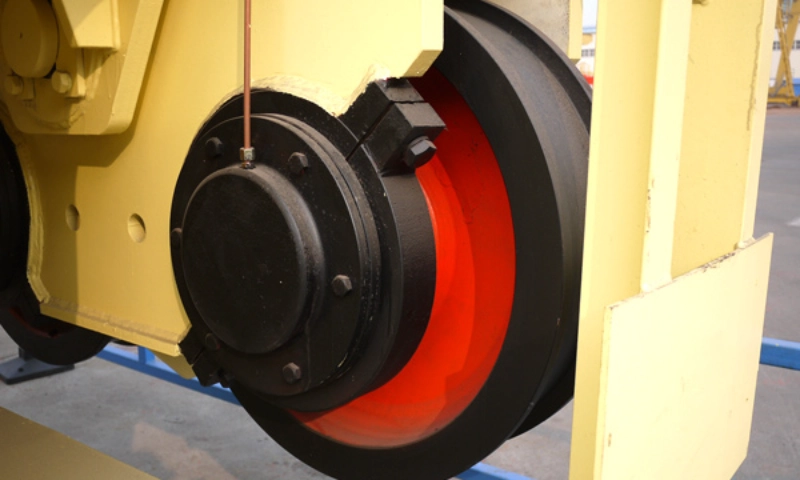

![Crane wheel 3](/dm-content/uploads/2023/04/rail-wheel-for-cranes_w_800px.webp)

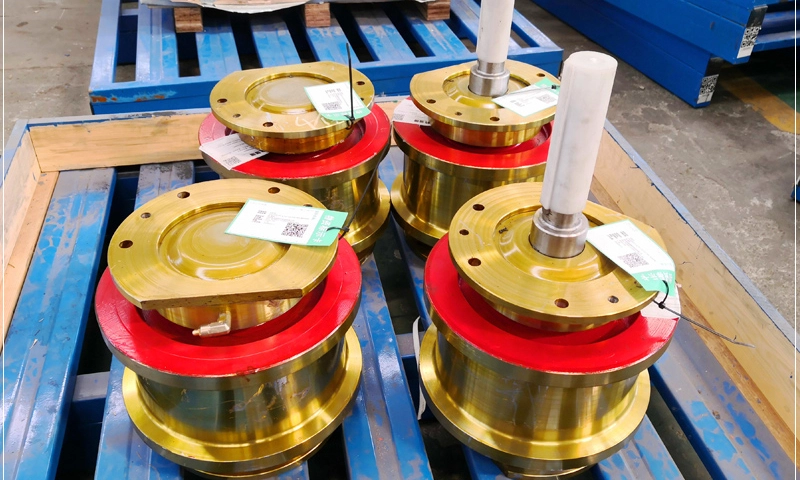

![Crane wheel 4](/dm-content/uploads/2023/04/europe-standard-crane-wheel_w_800px.webp)
![Crane wheel 1](/dm-content/uploads/2023/04/train-wheel-design-diagram_w_800px.webp)
Crane wheel
Wheel Diameter: Φ160mm~ Φ1000mm
Wheel Width: 90mm, 100mm, 120mm, 130mm or as your require
Groove Width: 70mm, 81mm, 100mm, 110mm or as your require
Wheel Material: ZG340-640, ZG50SiMn, 65Mn, 42CrMo
Bearing Brand: Ha shaft, Tile shaft, Luo axis, SKF, FAG, NSK, Other brands
Introduction
Our rail wheels are made of 42CrMo, 65Mn and other forging materials, it is processed by a robot production line composed of CNC lathes. The surface is wear-resistant, and an encoder excuse is reserved, which can effectively correct the deviation of the whole machine. The transmission efficiency is high, the bearing wheel pressure is large, and it can be installed accurate locating,It is suitable for cranes and other construction machinery running mechanisms.
Trust the strength and performance of our rail wheels to keep your overhead crane and gantry crane running smoothly and safely. Whether you use it for cranes or any equipment that uses rail wheels, our rail wheels provide durability and reliability for your equipment. Choose our rail wheels for unrivaled stability and precision on the rail.

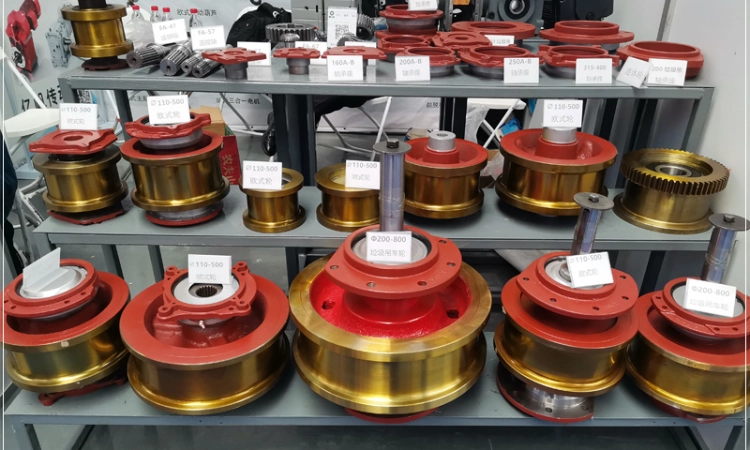

![Crane wheel 1](/dm-content/uploads/2023/04/overhead-crane-wheels_w_750px.webp)
Crane wheel
Applications:Crane wheels are for overhead crane, gantry crane, casting cranes, bin loading cranes, slab handling cranes, steel coil clamp cranes, magnet cranes, etc.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
Technical Parameter | |
Using Tonnage | Above 5T |
Surface Treatment | Zinc Plating |
Wheel Material | Cast Steel/Forging Steel |
Dia. Model | Ф200—Ф1200 or as your require |
Bearing Type | Steel Bearing |
Quenching Depth | ≥25mm |
Quality Control | UT, MT, RT, PT, chemical composition test, mechanical property test, etc. |
Standard | ASTM, ASME, DIN, JIS, ISO, BS, API, EN, GOST, etc |
Feature
The structure is easy to install and disassemble, with high assembly precision and stable operation;
High wear resistance and impact resistance, which improves the service life;
The German SPECTRO spectrometer is used for material testing to ensure the accuracy of the material;
Stable transmission and low noise;

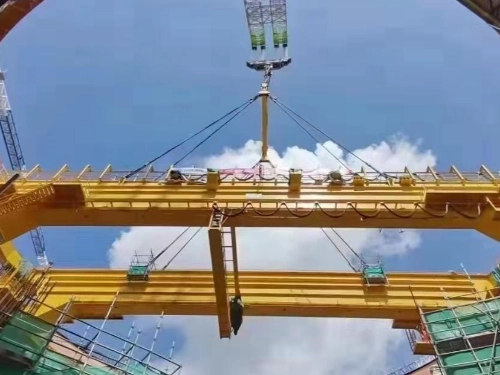

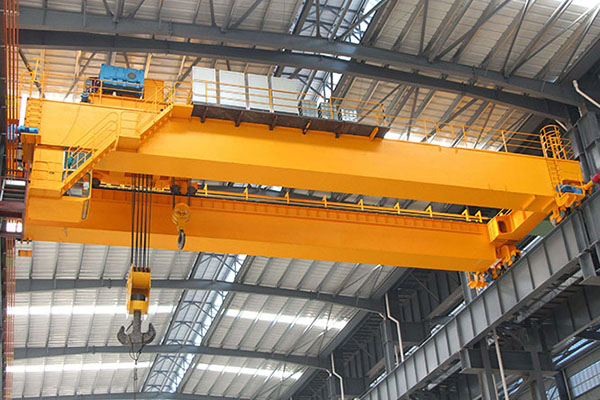

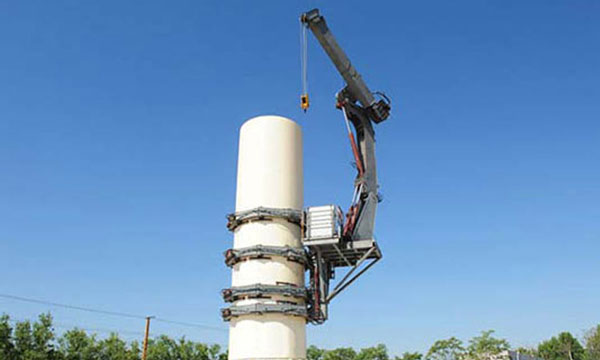

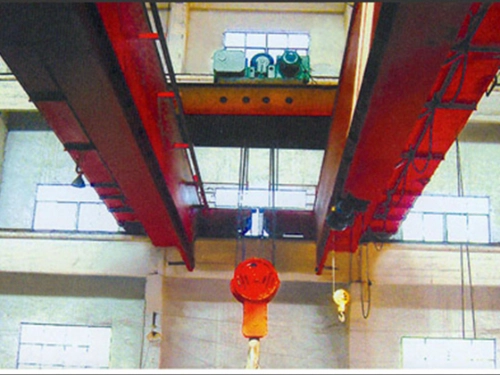

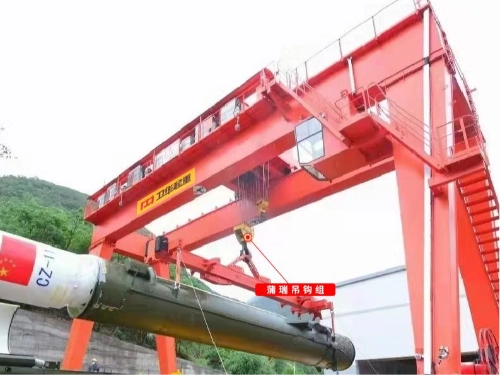

Case:
FAQ:
01Crane wheel lubrication and maintenance
Lubrication and maintenance have a great influence on the life and safety of the Crane wheel set. You need to understand the lubrication and maintenance intervals and methods required by the Crane wheel set.
Our crane wheel sets use high-quality lubrication systems and high-strength axles and wheels. They have a strong load-bearing capacity and can cope with different workload requirements. They can effectively reduce friction and wear and ensure the normal operation of the crane wheel sets. At the same time, we will also provide professional maintenance suggestions and guidance to help customers better maintain and maintain the Crane wheel set and prolong its service life. We will also provide customers with detailed instructions and user manuals before sales to ensure that customers can correctly install, debug and use the Crane wheel set.
02Can you customize rail wheels?
We accept customization and OEM, we have made a large number of rail wheels in the crane industry, crane steel wheels for metallurgical cranes,Ladle crane, gantry cranes, EOT cranes, foundry cranes, slab handling cranes, electromagnet cranes, coil clamp cranes,container cranes or ship unloader cranes etc. At the same time, we can also customize wheel sets for Rail transfer cart, Transportation carriage, Mill and airlines vehicle, Railway locomotive and train, Construction machinery etc.
03Rail wheel assembly
Rail wheels can be divided into driving wheels and passive wheels. The driving wheels have gears to match the drive motor, while the passive wheels are the opposite. Rail wheel sets typically consist of simple components such as wheels, axles, brackets, bearings and Lubricating system. We can provide rail wheel assembly and accessories, we can also OEM according to your design requirements.
