Euro type Wire Rope Electric Hoist
1.According IOS, GB, FEM, DIN, and BS standards.
2.Equipped with a third-generation anti-sway control system;
3.Can easily and accurately reach the designated position;
4.Have four structural design for users to choose;
5.Equipped with large diameter drum,effectively increase the lifting height;
6.Reduce plant construction cost...
Introduction
NR electric rope hoist is a result of years of research and development and global market experience by Weihua. It is a new generation electric hoist designed and manufactured in accordance with ISO, GB, FEM, DIN and BS standards, create the greatest value for the users with its excellent durability, high quality and cost-effective. It has four structural design for users to choose. Hoisting capacity ranges from 1 ton to 80 ton. Standard work duty FEM 2M / ISO M5.
Euro type Wire Rope Electric Hoist
Specification
| Load category | Average daily working time(hours) | ||||||
| 1 | Light load:The rated load is rarely lifted and always handle the loads. | 4-8 | 8-16 | >16 | |||
| 2 | Medium load:The rated load is sometimes lifted and the frequency of load handling is medium. | 2-4 | 4-8 | 8-16 | |||
| 3 | Heavy load: The rated load is always lifted and the handling loads are always heavy. | 1-2 | 2-4 | 4-8 | |||
| 4 | Super heavy load:always handling the rated load. | 0.5-1 | 1-2 | 2-4 | |||
| Work duty | M5 | M6 | M7 | ||||
| Pulley ratio | Model | ||||||
| 2/1 | 4/1 | 6/1 | 8/1 | ||||
| 4/2 | 8/2 | 12/2 | 16/2 | ||||
| Lifting capacity | |||||||
| 1 | 2 | - | - | - | - | ||
| 1.25 | 2.5 | - | - | - | - | ||
| 1.5 | 3 | - | - | NR1 | - | ||
| 2 | 4 | - | - | - | - | ||
| 2.5 | 5 | - | - | NR2 | - | - | |
| 3.2 | 6.3 | 10 | - | - | - | ||
| 4 | 8 | 12.5 | - | - | - | ||
| 5 | 10 | 16 | - | NR3 | - | ||
| 6.3 | 12.5 | 20 | 25 | - | |||
| 8 | 16 | 25 | 32 | - | |||
| 10 | 20 | 32 | 40 | NR4 | - | ||
| 12.5 | 25 | 40 | 50 | - | |||
| 16 | 32 | 50 | 63 | - | |||
| 20 | 40 | 63 | 80 | NR5 | - | - | |
Feature
Equipped with third-generation anti-sway control system，the electronic anti-sway control technology can reduce the mechanical and electrical damage caused by load shaking through controlling the sloshing of the load. The crane becomes easy to control, and the loads can be easily and accurately reached the designated position.

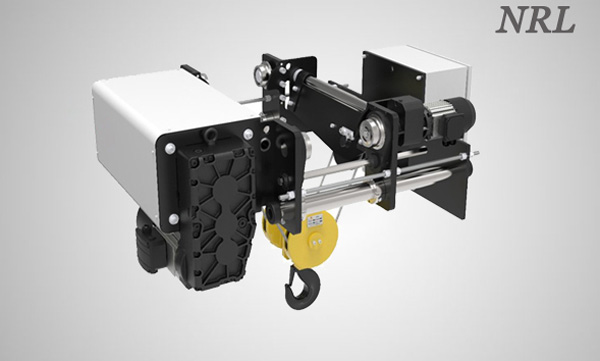

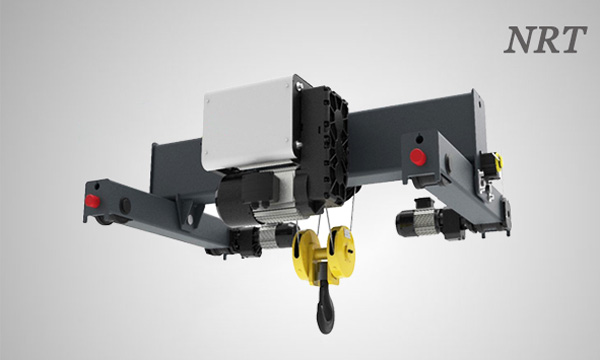

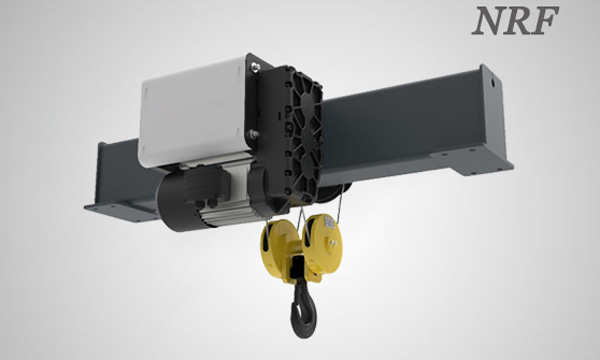

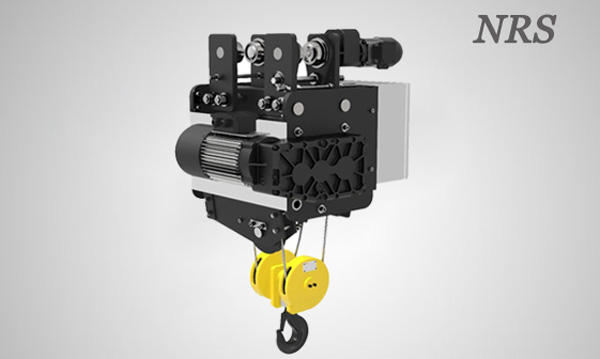

NR Electric Hoist with modular structure can fully meet your requirements which owns unprecedented flexibility and can provide you with perfect solutions for personalized needs.
All NR series Electric Hoist are equipped with large diameter drum, which can effectively increase the lifting height and reduce the left and right limits. Crane's dead zone when working becomes smaller, which can provide larger using space for the customers and reduce plant construction cost.
The motor power is reduced by 30% compared with the traditional Electric Hoist

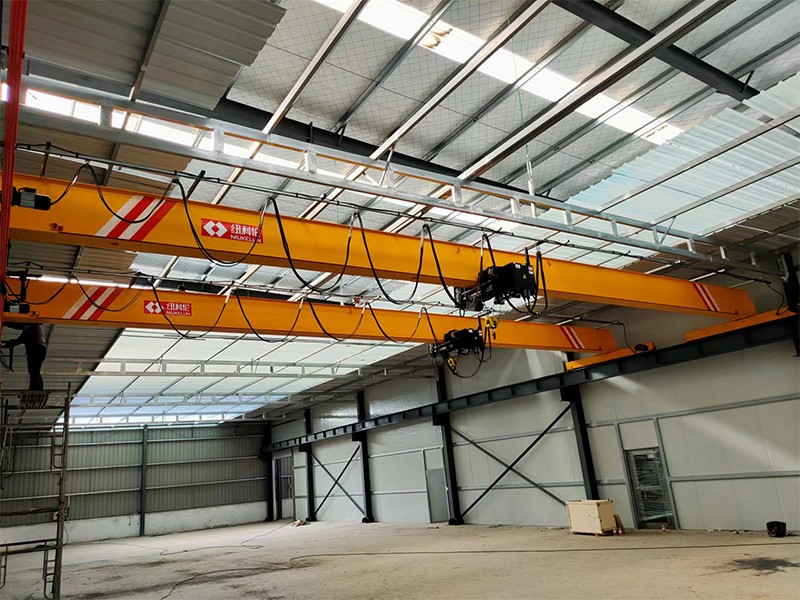

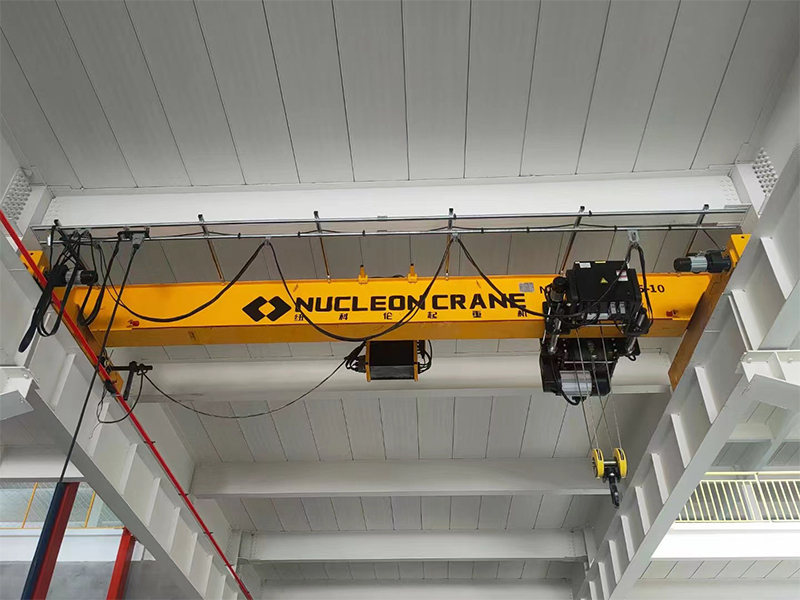

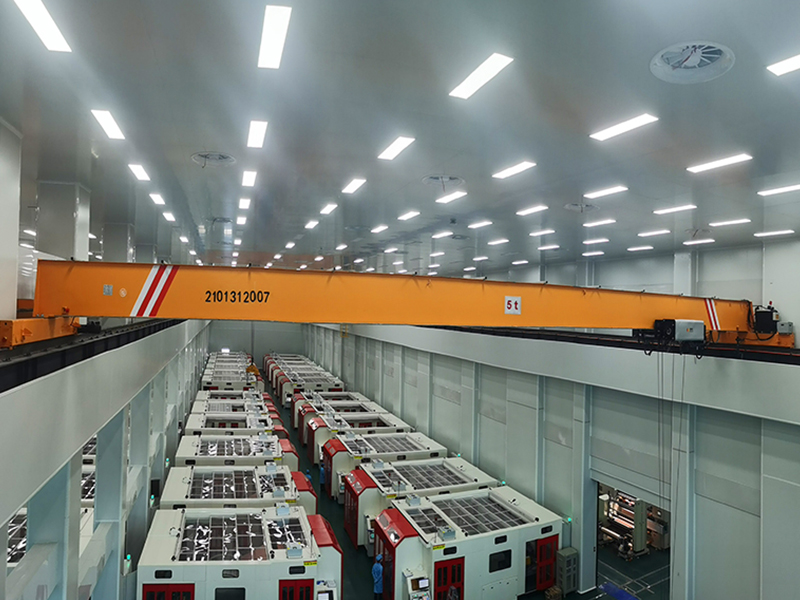

Case:
FAQ:
01 what is electric hoist？
Electric chain hoists are used for lifting or lowering material. An electric motor and controller are utilized to lift, lower and accelerate or decelerate the speed of the hoist. Electric hoists are ideal for use in industrial production lines and small machine shops where more frequent and faster lifting is required.
02What Exactly Is And Explosion proof Crane?
The reason why these are called explosion proof is that you will struggle to produce a spark from them. This is very important when these cranes are utilized in locations where potential fires will start.
03What is an electric hoist used for?
Electric chain hoists are used for lifting or lowering material. An electric motor and controller are utilized to lift, lower and accelerate or decelerate the speed of the hoist. Electric hoists are ideal for use in industrial production lines and small machine shops where more frequent and faster lifting is required.
