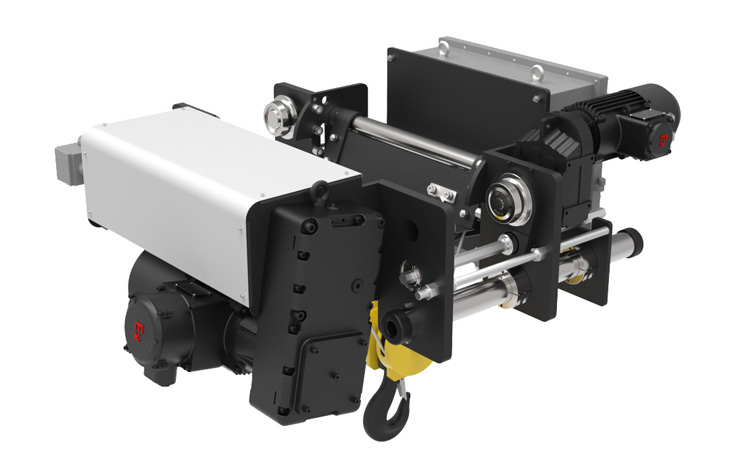

Explosion-Proof Wire Rope Electric Hoist
1.According IOS, GB, FEM, DIN, and BS standards.
2.Equipped with a third-generation anti-sway control system;
3.Can easily and accurately reach the designated position;
4.In hazardous environments, where safety and efficiency are key.
5.High Safety, Reliability, Efficiency and Maintenance Free...
Introduction
Our explosion proof cranes with wire rope hoist are widely used for the oil, gas, chemical, petrochemical and pharmaceutical industries, the food processing industry as well as the power supply, shipbuilding, offshore and other explosive environments.
Safety and reliability is especially important in hazardous environments, where safety and efficiency are key. All crane components of our explosion proof cranes are selected to ensure the high level of safety required for the hazardous atmospheres in chemical and petrochemical plants, pharmaceutical, oil refineries, gas power plants, shipyard, waste water treatment plants, paint shops and other industrial sites. Our hoists have been designed and built to provide years of reliable and safe operation.
Explosion-Proof Wire Rope Electric Hoist
Specification
| Lifting Capacity | t | 3 | 5 | 10 | 16 | 20 | 32 | 50 |
| Lifting Height | m | no more than 24 | ||||||
| Lifting Speed | m/min | 4/0.67 | 5/0.8 | 3.3/0.5 | 4/0.67 | 2.7/0.4 | ||
| Traveling Speed | m/min | 2-20 | ||||||
| Load | Nominal load spectrum coefficient | Use Rating | |||||||||
| T0 | T1 | T2 | T3 | T4 | T5 | T6 | T7 | T8 | T9 | ||
| L1 - light | 0.125 Km | M1 | M3 | M3 | M4 | M5 | M6 | M7 | M8 | ||
| L2 - medium | 0.25 Km | M1 | M2 | M3 | M4 | M5 | M6 | M7 | M8 | ||
| L3 - heavy | 0.50 Km | M1 | M2 | M3 | M4 | M5 | M6 | M7 | M8 | ||
| L3 – Ex. heavy | 1.00 Km | M2 | M3 | M4 | M5 | M6 | M7 | M8 | |||
Feature
High Safety, Reliability, Efficiency and Maintenance Free
Safety monitoring systems for hoisting and travelling mechanism, many functions can be achieved according to the demands of users.
Case:
FAQ:
01 what is electric hoist？
Electric chain hoists are used for lifting or lowering material. An electric motor and controller are utilized to lift, lower and accelerate or decelerate the speed of the hoist. Electric hoists are ideal for use in industrial production lines and small machine shops where more frequent and faster lifting is required.
02What Exactly Is And Explosion proof Crane?
The reason why these are called explosion proof is that you will struggle to produce a spark from them. This is very important when these cranes are utilized in locations where potential fires will start.
03What is an electric hoist used for?
Electric chain hoists are used for lifting or lowering material. An electric motor and controller are utilized to lift, lower and accelerate or decelerate the speed of the hoist. Electric hoists are ideal for use in industrial production lines and small machine shops where more frequent and faster lifting is required.
