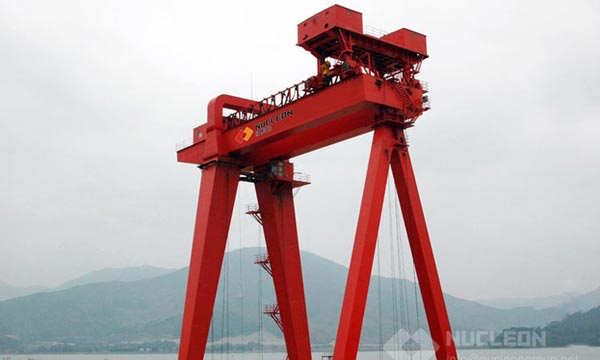

A-type Double Beam Hanger Gantry Crane

Introduction

A-type Double Girder Gantry Cranes are box-seal gantry cranes and flower-framed-hook gantry cranes, which are divided into single and double beams. The gantry cranes are suitable for open storage, stockyards, railway freight stations, and port terminals. Loading and unloading operations. A-type Double Girder Goliath Cranes can also be equipped with a variety of special spreaders (magnetic chucks, grabs) for certain special operations. The user should indicate the technical requirements such as the highest and lowest temperature of the working environment and the type of power supply when the user selects.

A-type Double Beam Hanger Gantry Crane

Specification

Capcity	Main	t	5					10
	Aux.		-					-
Span		m	18	22	26	30	35	18	22	26	30	35
Lifting Height			10			12		10			12
			一					一
Work Duty			A5					A5
Speed	Main	m/min	12.5					8.5
	Aux.		-					-
	Crab travelling		37.2					43.8
	Trolley travelling		37.7					37.7
limit dimensions	LI	mm	6500			9000		6500			9000
	L2		6500			9000		6500			9000
	L		-					-
	C1		5000			7500		5000			7500
	C2		5000			7500		5000			7500
main dimensions	H	mm	13474	13574	13624	15706	15806	14580			16590
	HI		10000			12000		10000			12000
	H2		-					-
	H3		540			660		540		660
	B		8554			10350		9554			11350
	K		1400					2000
	W		7000			8500		8000			9500
Max.Wheel Load		kN	180	190	200	230	240	225	228	245	290	310
Total Power		kW	31.8			40.8		36.5		45.5
Crane Rail Recommended			P43					P43
W Power Supply			3-Phose A.C.50Hz 380V					3-Phose A.C.50HZ 380V

Feature

This kind of double girder gantry crane adopts the box-shaped double beam welding structure, which increases the working space and facilitates transportation installation and maintenance.

Cable conductor adopts special-shaped rail conductive device.

The parts are standardization, serialization, generalization.

This gantry crane power supply in the form of cable reel type (divided into the left and right) and slide wire type (divided into left and right) two, available for the user to choose.

The driver's room has a wide field of vision, and a linkage console is set up inside. The operation is flexible, stable and comfortable. Can also be based on user requirements plus fan, hot air, cooling fan, air conditioners, walkie-talkie and so on.
