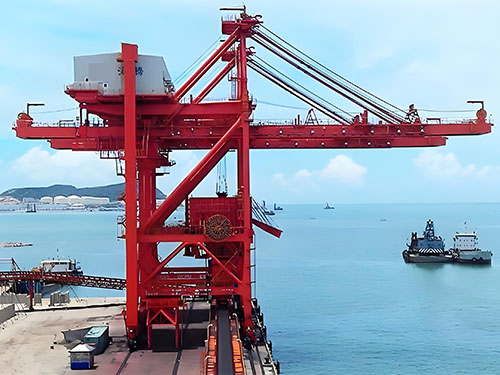

Ship Loader 1

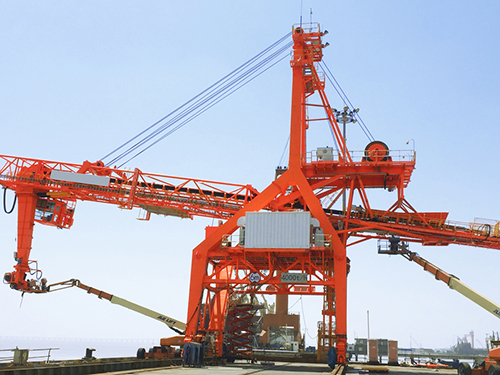

Ship Loader 2

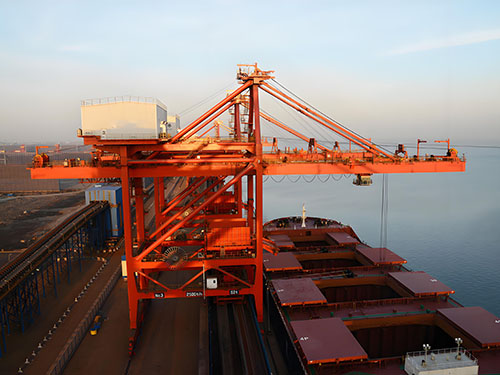

Ship Loader 3

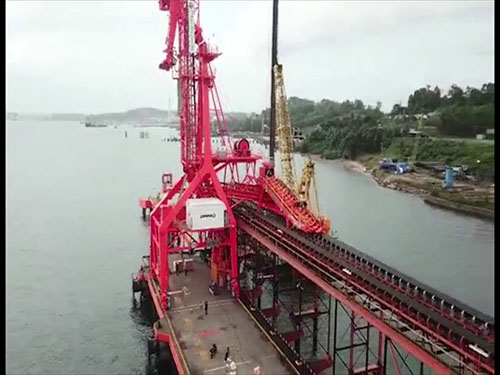

Ship Loader 4
Ship Loader 1

Ship Loader

Loading Capacity:  200~12000(t/h)

Traveling Speed:  5~30(m/min)

Recommended Rail: QU80/QU100


Introduction

Nucleon(Xinxiang)Crane Co., Ltd., loaders are ­tailored to your needs, with a focus on performance. Outstanding performance relates not only to capacity, but also to efficiency, economy, the environment, safety and careful cargo handling.

The design, manufacture and inspection comply with latest Chinese standard and international standards such as FEM, DIN, IEC, AWS and etc. It is mainly composed of metal structure, traveling mechanism, column, rotating mechanism, luffing mechanism, telescopic boom gear, telescopic chute mechanism, tripper car, belt conveying system, counterweight, water spray dust removal system, electrical system and etc.

It is divided into four types according to performance characteristics, respectively mobile type, arc trajectory swing type and liner swing type. Now, the first two types ship loader are the main products in the market.

Multiple operation modes with free switching: single action, manual operation, semi-automatic operation and local mode according to different operation requirements.

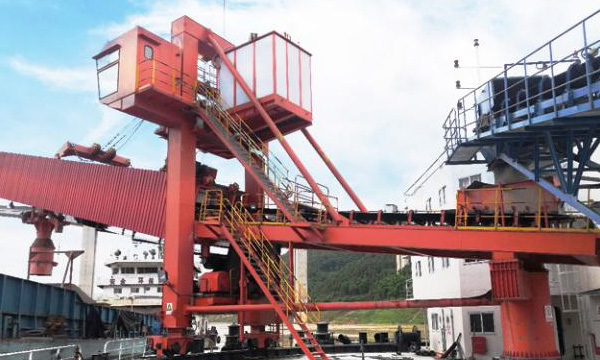

Ship Loader 1

Ship Loader

Applications: Ship loader is a large machine used for continuously loading bulk solid materials such as iron ore, coal, fertilizers, grains and/or material in bags onto ships or barges. These machines are located in ports and jetties to facilitate bulk material exportation. ect.

  • OEM and ODM accepted;

  • Lower price at same quality;

  • Drawing provided when need;

  • 24 hours price provided;

  • Customization production, high efficiency;



Specification

Main Technical Parameters of Ship Loader
Loading Capacityt/h200~12000
Material CharacteristicsMaterialsBulk materials such as coal, coke, iron ore, limestone, sand, clay etc.
Densityt/m³0.5~2.5
Particle Sizemm0~300
Ship TypeDWT3000~150000
Boom OutreachMaximumm12~55
Minimumm6~27.5
Conveyor BeltBelt Widthmm650~2400
Belt Speedm/s1.25~5
                                         Boom LuffingOperation°-12~+15
Non-operation°70
Traveling Speedm/min5~30
Rail Gaugem10~24
Maximum Wheel LoadKN300/350
Recommended RailQU80/QU100
Power Supply Modecable drum/safety bus bar
Communication Modecable drum/wireless
Control MethodFully automatic/PLC/manual operation/ single mechanism operation.

Feature

  • Nucleon developed the most advanced shiploaders, paying special attention to environmentally friendly operation and a high degree of automation;

  • Outstanding quality, reliability and durability-extensive global references;

  • Optimized the product portfolio of various types of shiploaders economically and technically to meet the needs of customers;

  • A large number of reference materials for all types of shiploaders with the highest capacity.

FAQ:

What kinds of cargo is suitable for the ship loader?

Ship loader is large-scale bulk machinery used for loading materials in bulk ports and terminals and conveying bulk materials with different densities and particle sizes, such as sand, limestone, cement, coal, grain and etc. It usually provides continuous loading operation together with belt conveyor. The ship loader adapts to ship type from 3000 ton to 150000 ton and production capacity from 200t/h to 12000t/h. It owns high efficiency, long service life, energy saving and environmental protection as well as meets efficient and frequent operation requirements.
