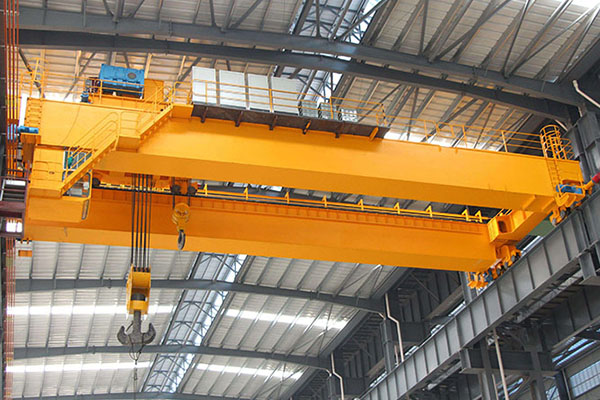

Heavy duty overhead crane
Lifting capacity: 50t~ 1200t
Span: customized according to customer needs
Running speed: 0~20m/min (full load), 0-35m/min (no load)
Climbing capacity: 2% ~ 4%
Introduction
Heavy duty overhead crane is a powerful piece of machinery found in steel mills, foundries, heavy machine shops, chemical plants and warehouses. It usually comes in double girder construction. The heavy duty crane supplied by Nucleon can lift a large amount of weight, usually going up to 550 tons. It features sturdy strucrture, great durability, excellent safety and reasonable cost.
Different Models of Heavy duty overhead crane:
General Type：
European Standard
With Hoist
European Standard With Hoist
Heavy duty overhead crane

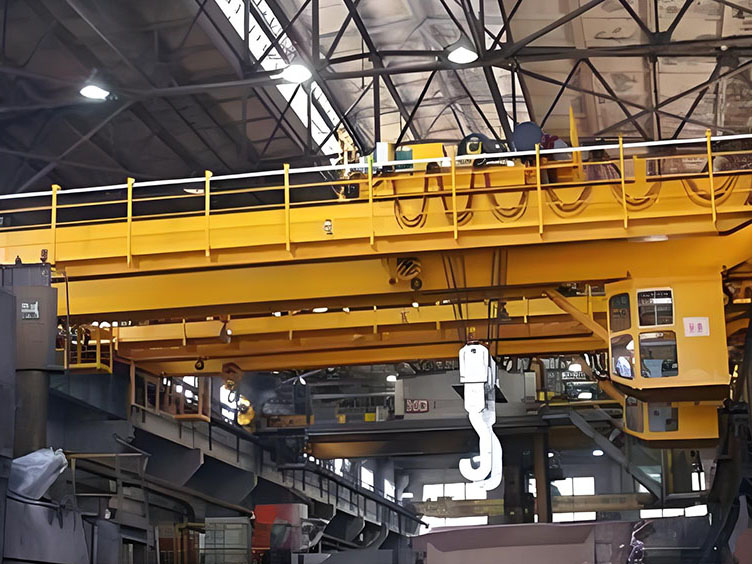

Applications:The double trolley overhead crane can be used at power plant, metallurgy plant, steel plant, workshop, warehouse, papermaking, shipbuilding, etc.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
| Model | Heavy Duty Overhead Cranes | |||||||||||
| Lifting capacity | t | 5 | 10 | 16/3.2 | 20/5 | 32/5 | 50/10 | 75/20 | 100/20 | |||
| Max. lifting height | Main lifting | m | 16 | 16 | 16 | 12 | 16 | 12 | 20 | 22 | ||
| Aux. lifting | m | 18 | 14 | 18 | 16 | 22 | 22 | |||||
| Span | m | 10.5-31.5 | 13.5-31.5 | 13-31 | ||||||||
| Lifting speed | Main lifting | A5 | m/min | 11.3 | 8.5 | 7.9 | 7.2 | 7.5 | 5.9 | 6.1 | 3.9 | |
| A6 | 15.6 | 10.4 | 10.7 | 9.8 | 9.5 | 7.8 | 6.1 | 4.9 | ||||
| Aux. lifting | 14.6 | 15.5 | 15.5 | 10.4 | 7.2 | 7.2 | ||||||
| Trolley traveling speed | m/min | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | 38.5 | 38.4 | 33.86 | |||
| Crane traveling speed | A5 | m/min | 89.8(91.8) | 89.8(91.9, 84.7) | 84.7(87.6) | 84.7(87.6) | 87.6(74.2, 74.6) | 74.6 | 65 | 65.7 | ||
| A6 | 92.7(93.7) | 92.7(93.7, 86.5) | 76(89) | 76(89) | 89(75.3) | 75(76.6) | 66.2 | 65.7 | ||||
Feature
1. The whole crane adopts frequency conversion and PLC control, which has stable lifting, small impact and less noise;
2. The trolley adopts European-standard design with compact structure, overall processing of trolley frame with high assembly precision;
3. The bridge structure finite element analysis makes the structure more optimized and more reasonable;
4. The components are durable and maintenance-free, equipped with hardened surface reducer, welding reel, rolling pulley and forged wheel;
5. Fast on-site installation without welding works;
6. CTS electrical modular system, convenient maintenance;
7. The whole crane is equipped with safety monitoring system and crane electric correcting device, and reserves interfaces of electrical intelligent anti-sway, intelligent jog, automatic positioning, remote monitoring and other interfaces.

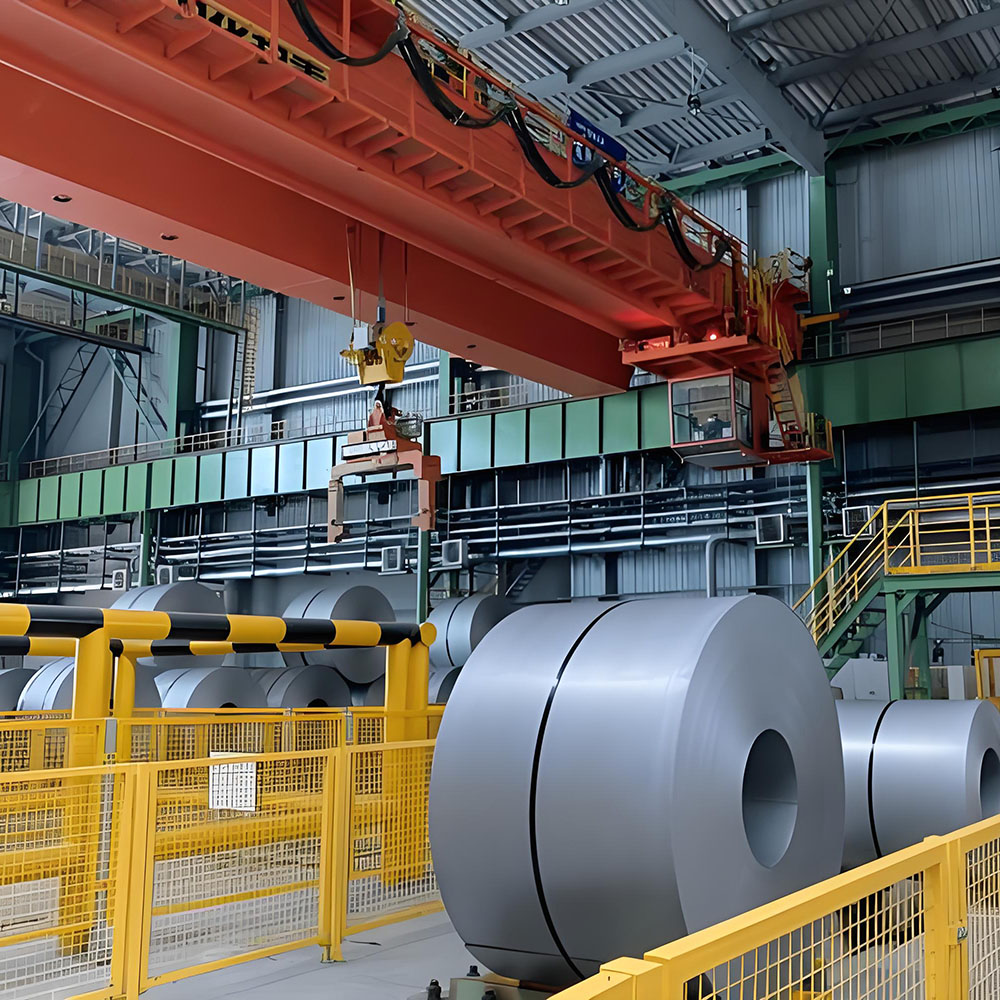

Case:
FAQ:
01How do I choose the right overhead crane?
The basic parameters of the overhead crane include lifting capacity, lifting height, working level, working speed and span. The most commonly used series is 32-1200t.
02What are the application scenarios of Heavy duty overhead crane
Mobile boat hoist, also named boat travel lift is widely used as hoist equipment for water sports, yacht club, sailing and voyage. It is used to move boat or yacht with different capacity (32t-1000t) for maintenance repairing or move new boat into water.
