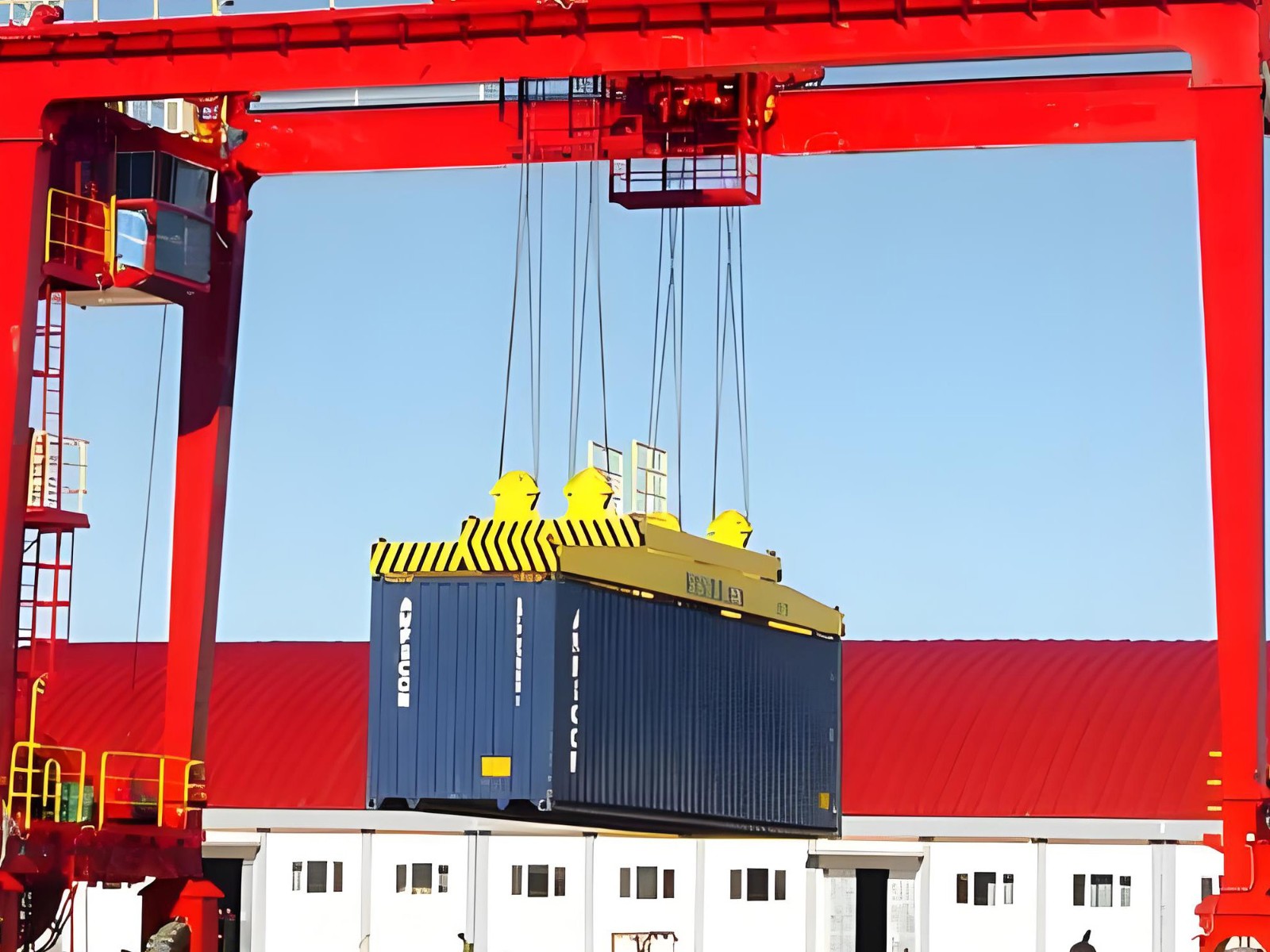

RTG /Rubber-tired Container Gantry Crane 1

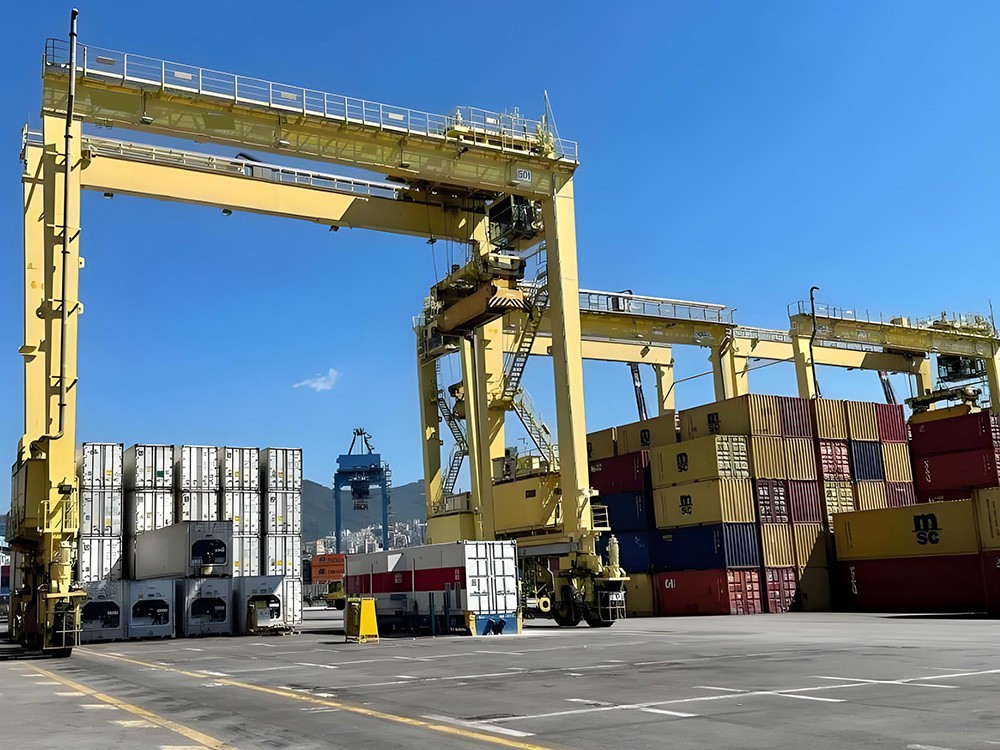

RTG /Rubber-tired Container Gantry Crane 2

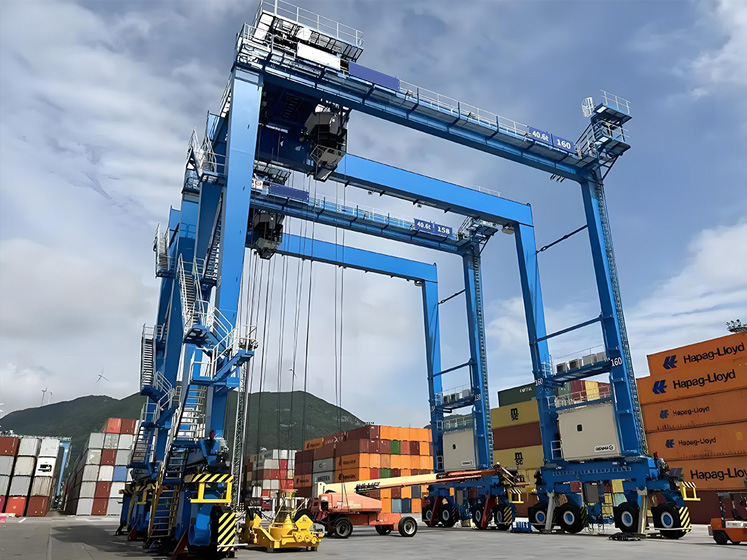

RTG /Rubber-tired Container Gantry Crane 3
RTG /Rubber-tired Container Gantry Crane 4
RTG /Rubber-tired Container Gantry Crane 1

RTG /Rubber-tired Container Gantry Crane

Lifting capacity: 35 without spreader T

Span: 30 M

Lifting Height: 16 M

Working Duty: A6


Introduction

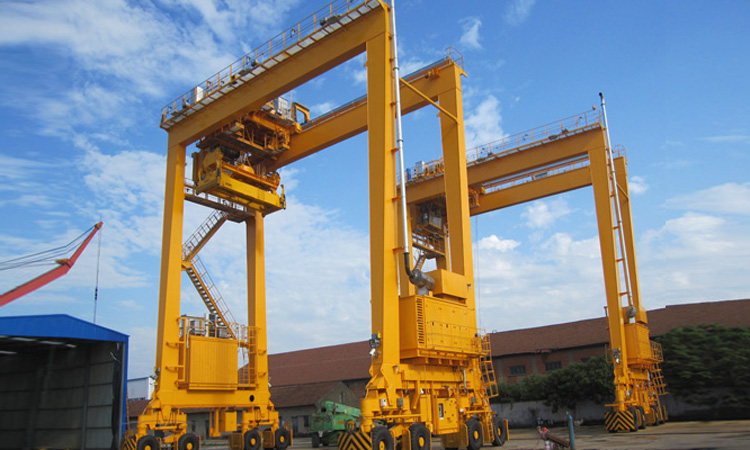

RTG crane is short for Rubber-tired container gantry crane, which is one of the main products of our company. At present, we have developed the products to standardized series products. For safety facilities, the rubber tired gantry crane is equipped with overload protection, diesel engine over speed rotection, water high temperature indicator and lower oil pressure indicator devices, and wind speed indicator, typhoon anchor device, emergency stop button and each mechanism limit switch and indicator, etc.

RTG /Rubber-tired Container Gantry Crane 1

RTG /Rubber-tired Container Gantry Crane

Applications: RTG crane is short for Rubber-tired container gantry crane ect.

  • OEM and ODM accepted;

  • Lower price at same quality;

  • Drawing provided when need;

  • 24 hours price provided;

  • Customization production, high efficiency;


Specification

Lifting CapacityT35 without spreader
SpanM30
Lifting HeightM16
Working DutyA6
Container Size20f and 40f
SpeedHoistingm/min0~10
Cross Traveling3.4~34
Crane Traveling2.9~29
MotorHoistingType/KwYZP280M-8/2×55
Cross TravelingYZP180L-8/2×11
Crane TravelingYZP160L-6/4×11
WeightTrolleyt34
Total Weight215
Max. Wheel LoadKN295
Steel Rail Recommended
P43
Power Supply3 Phase A.C. 50HZ 380V

Feature

  • It can ensure that the box girder will not fall with the lifting winch equipped with dual braking system and other lifting parts with reliable design.

  • Can lift several steel pipes at once, carry out 0° traveling, 45°traversing, 90°traversing and in-place steering.

  • Reasonable structure, convenient operation, quick action, high reliability, low failure rate, which

  • Running Mode is Straight, transverse, fixed point, rotation.

  • The running gear uses the hydraulic suspension system.

  • Can realize automation control, and it's the first selection of port container yard handling machine.

FAQ:

  • 01How do I choose the right RTG crane?

    The basic parameters of the overhead crane include lifting capacity, lifting height, working level, working speed and span. The most commonly used series is 32-1200t.

  • 02What are the application scenarios of RTG crane

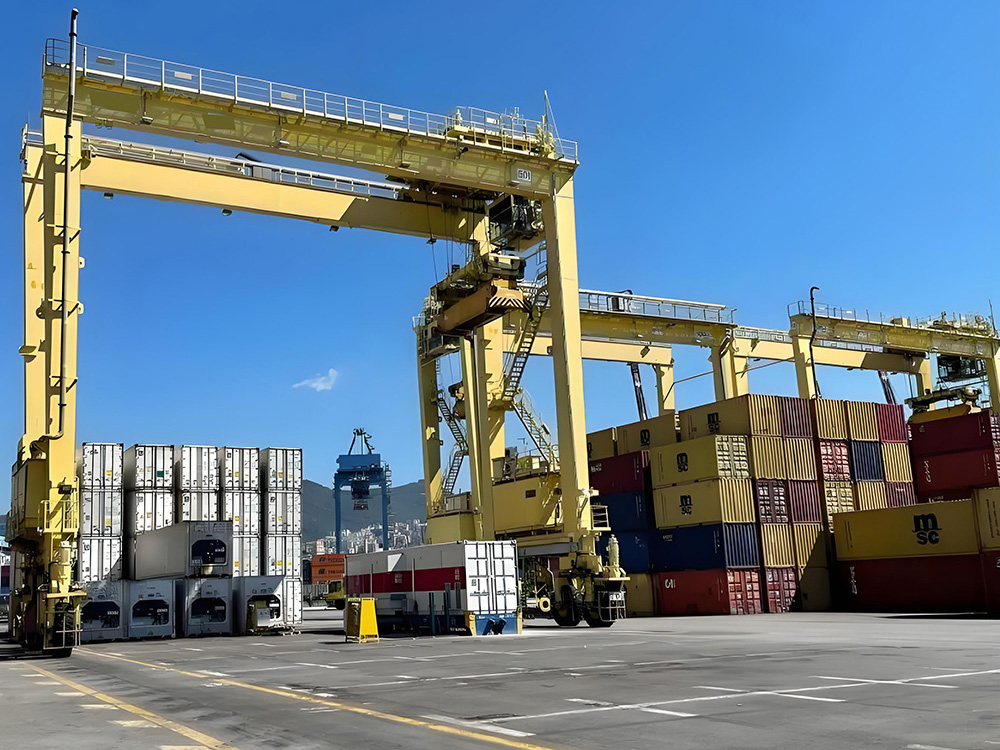

    Container handling in docks and ports requires high performance RTGs, our weihua RTGs can be configured to span up to 8 container widths.
