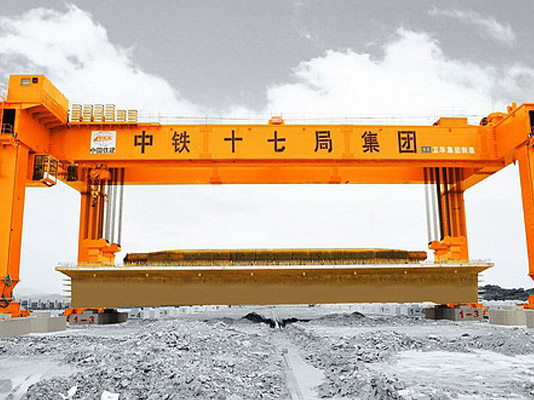

Gantry crane for railway construction
Lifting Capacity(t): 450 (without spreader) Single
450+450 Double
Span: 38m
Introduction
Nucleon gantry crane for railway construction is specially designed for the concrete span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.
Nucleon railway construction gantry crane consists of main girder, rigid and flexible supporting leg, travelling mechanism, lifting mechanism, electric control system, hydraulic system, driver room, railing, ladder and walking plat.
Gantry crane for railway construction
Applications: applied to construction workshops,ect.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
| Lifting Capacity | Single | t | 450 (without spreader) | |
| Double | t | 450+450 | ||
| Span | m | 38 | ||
| Lifting Height | m | 30 | ||
| Tracks Center Distance | m | 1,500 | ||
| Speed | Hoisting | m/min | 0.05 ~ 0.5 ~ 1 (no load) | |
| Trolley | 0.2 ~ 2 ~ 4 (no load) | |||
| Crane | 0.5 ~ 5 ~ 10 (no load) | |||
| Electric Hoist | Model | CD1 16-30D | ||
| Lifting Capacity | t | 16 | ||
| Lifting Speed | m/min | 3.5 | ||
| Traveling Speed | 20 | |||
| Lifting Height | m | 28.5 | ||
| Work Duty | A3 | |||
| Steel Track Recommended | P50, P60 | |||
| Max. Wheel Load | KN | 360 | ||
| Work Duty | A5 | |||
| Total Weight | t | 410 | ||
| Total Power | KW | 175 | ||
| Power Source | 3P, AC, 50Hz, 380V | |||
Data Sheet of Gantry Crane for Beam Moving:
| Lifting Capacity | t | 900 (without spreader) | |
| Span | m | 38.5 | |
| Lifting Height | m | 12 | |
| Tracks Center Distance | m | 1,200 | |
| Speed | Hoisting | m/min | 0.05 ~ 0.5 ~ 1 (no load) |
| Trolley | Hydraulic push rod | ||
| Crane | 1 ~ 10 ~ 12 (no load) | ||
| Electric Hoist | Model | WH164 20t-12D | |
| Lifting Capacity | t | 20 | |
| Lifting Speed | m/min | 3.3 | |
| Traveling Speed | 14 | ||
| Lifting Height | m | 12 | |
| Work Duty | A3 | ||
| No Load Steering | 90° | ||
| Wheel Base | m | 16 | |
| Concrete Beam | m | 20, 24, 32 | |
| Steel Track Recommended | P50, P60 | ||
| Max. Wheel Load | KN | 225 | |
| Work Duty | A3 | ||
| Total Weight | t | 505 | |
| Total Power | KW | 259 | |
| Power Source | 300KW | ||
Feature

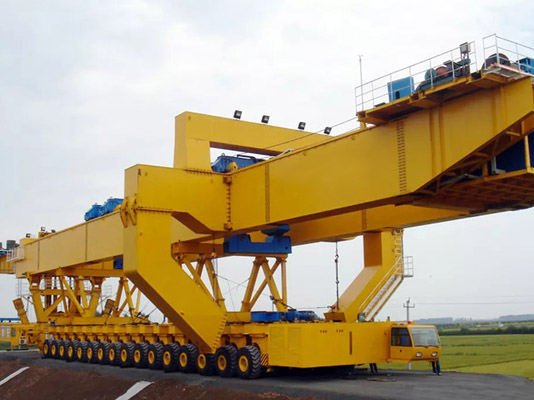

Rubber tire type and rail-mounted type;
Hydraulic driven of walking, steering and lifting;
Walk straight, oblique and rampage;
Good adaptability, high working efficiency, small space occupied;
Special spreader mainly used for lifting and transporting large concrete beam/bridge;
2 cranes, 2 trolleys with max lifting height 30m;
The max wheel load is 22t when lifting 900t stuff;
90° shift for rail type crane to achieve horizontal or vertical walking;
4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope ;
Accurate positioning for stuff lifting down;
Hydraulic push for trolley to realize various lifting and save the cost;
For the 4 hoists, it can be single use or combine use of 2 or 4 hoists while the hardware and software are interlocked for operation safety.

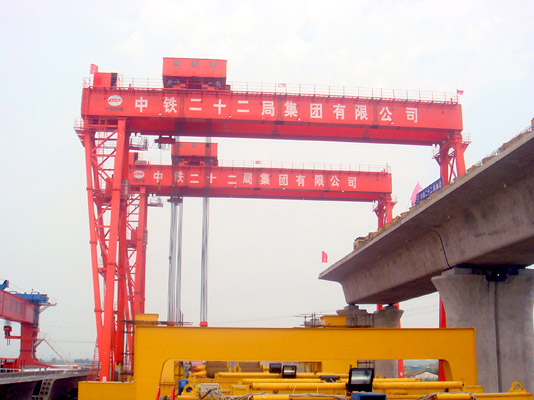

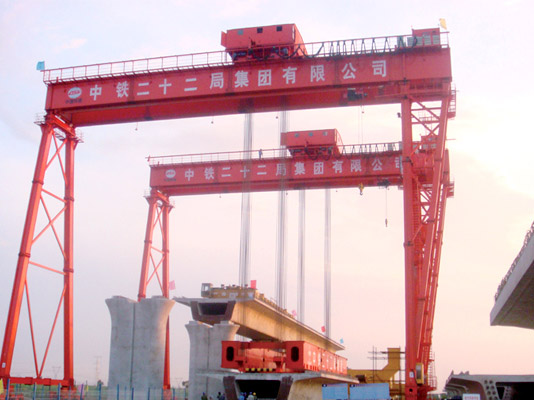

Case:
FAQ:
01How do I choose the right gantry crane?
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for gantry Crane.
02What are the application scenarios of Tundish crane?
Nucleon gantry crane for railway construction is specially designed for the concrete span beam/bridge moving and transport for railway construction. Users can use 2 cranes 500t (450t) or 1 crane 1000t (900t) with 2 lifting points to handle railway beam.
