Gantry Crane for Project

Introduction

Gantry crane for project is applied to construction workshops, such as roads, bridges and power plant, for general handling and lifting operations.

Tankiliang Gantry crane structure is simple, easy to manufacture and install, its own quality is small, the main Liangdo is a partial rail box frame structure.Compared with double main girder gantry crane, the overall stiffness is weaker.Therefore, this form can be used when the weight is q≤50t and span s≤35m.Tankiliang Gantry crane Door legs have L-type and C-type two forms.L-type manufacturing installation is convenient, the force is good, the quality of its own is small, but the lifting cargo through the legs of the space is relatively small.The foot of the C-type is tilted or bent in order to have a large transverse space so that the goods pass smoothly through the feet.

Double main girder door crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of single main girder gantry crane with the same weight, and the cost is higher.According to the different structure of the main girder, it can be divided into two forms, box girder and truss.In general, box-shaped structures are used.

Gantry Crane for Project

Specification

Cap	Main	t	40	60
Cap	Aux.	t	-	-
Span		m	42	42
Lifting Height			15	15
Lifting Height			-	一
Work Duty			A5	A5
Speed	Main	m/min	4	4
	Aux.		一	一
	Crab travelling		30	30
	Trolley travelling		18	20
limit dimensions	L1	mm	1890	1890
	L2		8000	8000
	L		一	一
	C1		3750	3925
	C2		1750	1925
main dimensions	H	mm	22654	23672
	H1		9000	9000
	H2		-	-
	H3		460	460
	B		11696	12218
	K		2300	2300
	W		9000	9000
Max.Wheel Load		kN	220	296
Total Power		kW	39.4	60.4
Crane Rail Recommended			P43.P50	P43.P50
Power Supply			3-Phase A.C.50Hz 38〇V	3-Phase A.C.50Hz 380V

Feature

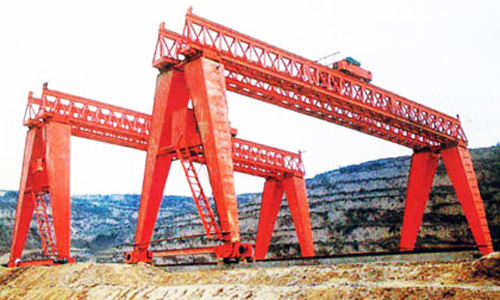

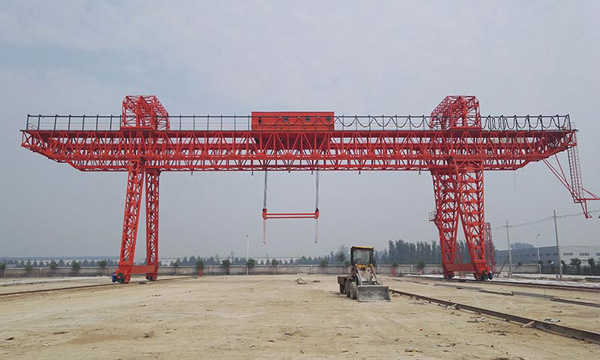

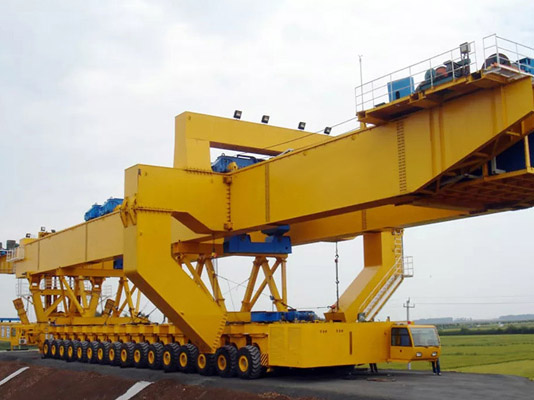

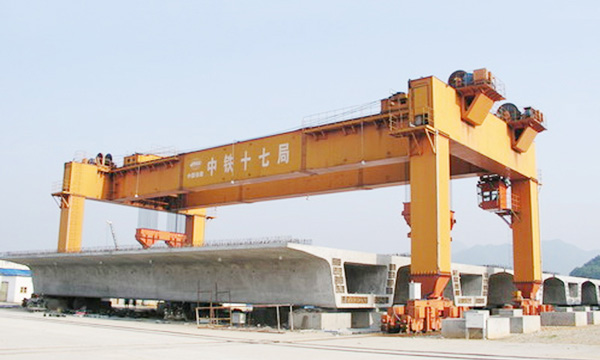

The whole machine adopts truss structure.

It is light in weight, small in wheel pressure and reliable in performance.

Single girder or double girder can be selected according to user's demand.

This product can be controlled on ground and operating room. The operating room can be open or closed, which can be installed on the left side or right side and there are 3 ways to enter the room side end face and top to meet the needs of users in a variety circumstances.

The cantilever parts can be designed according to the factory operating space.

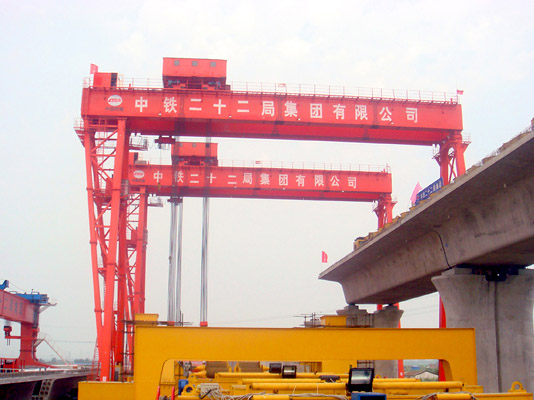

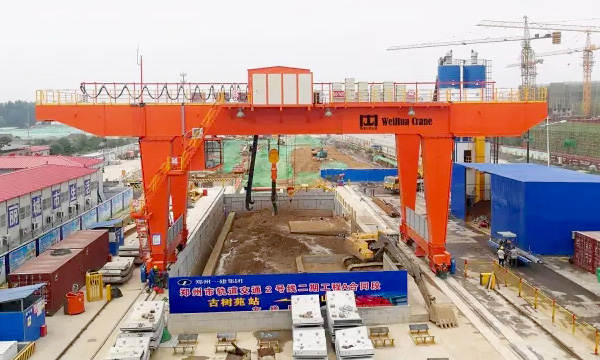

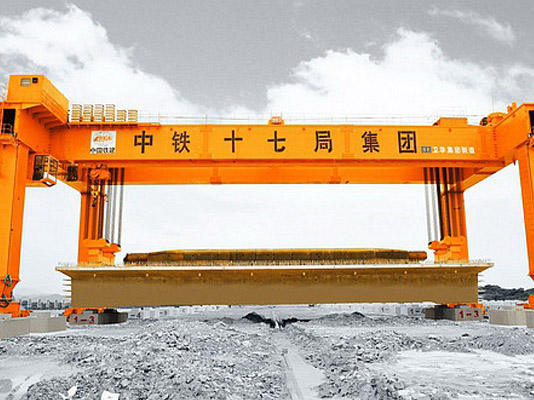

Case:
