Ladle handling crane
Lifting Capacity(t): 32-125 tow girders
Span(m): 19.5~28.5, 19~28
Lifting Capacity(t): 50-320 four girders
Span(m): 21-28
Introduction
Coil and plate handling crane handles metal bars, plates, and coils during machining processes. They can be designed for both indoor and outdoor use. Due to the wide variety of materials they need to handle, such a crane can be fitted with a variety of lifting devices that change with the nature of the material.
Nucleon coil and plate handling crane is designed for traveling a long distance quickly to keep duty cycles short using specialized hook extensions for plates, tubes, rolls or coils up to 80 tons. It can be equipped with Smart Features such as Load Positioning, Sway Control, and Overload Protection to shorten handling times, reduce wear on the crane, extend its life and speed up workflow. Tailoring provides you with attachments for any steel products, and additional capacity, as per your requirements.
Integrated with the Nucleon Warehouse Management System (WMS), the crane helps organize your storage area and makes finding the right product easier.
Ladle handling crane

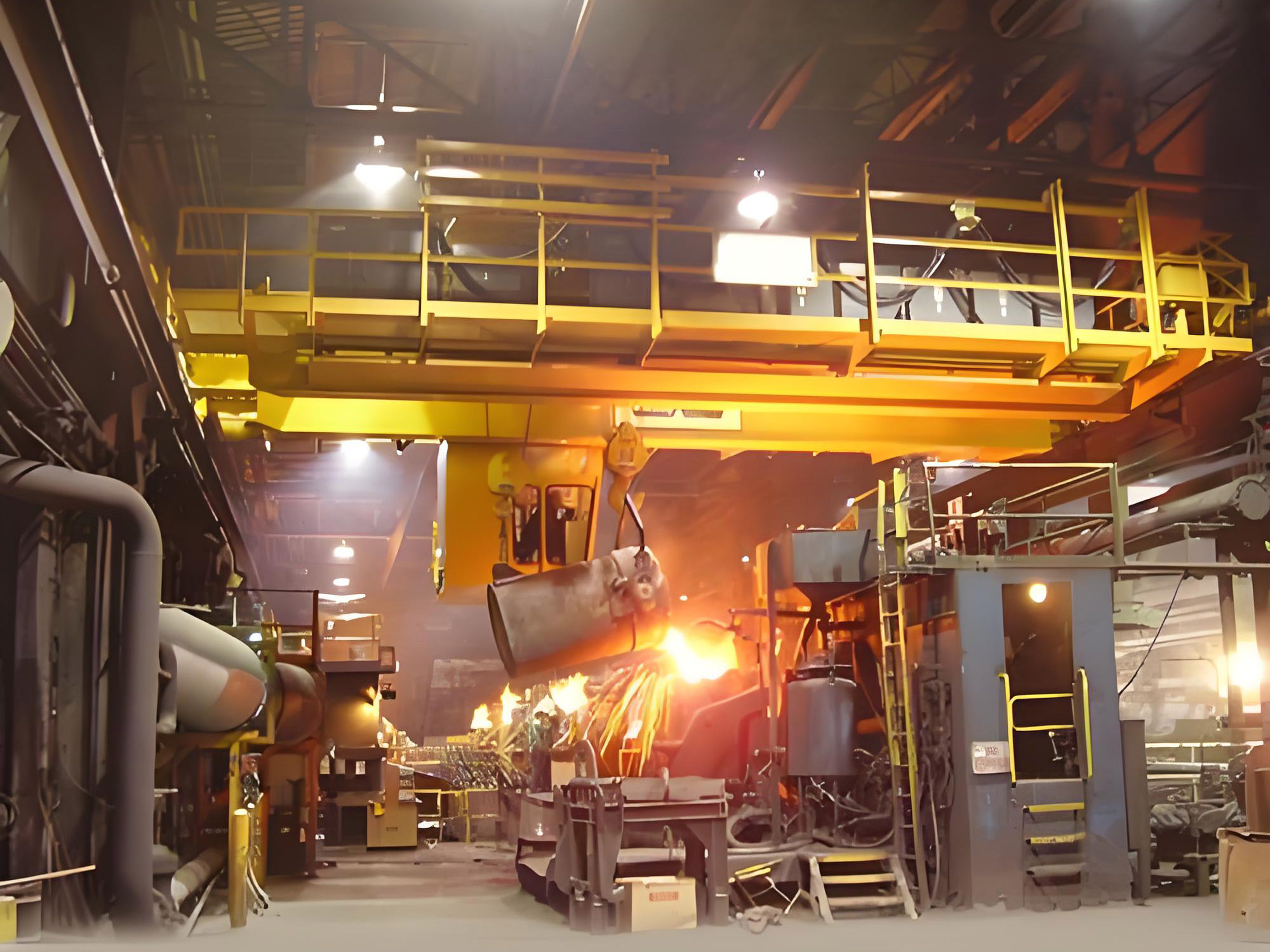

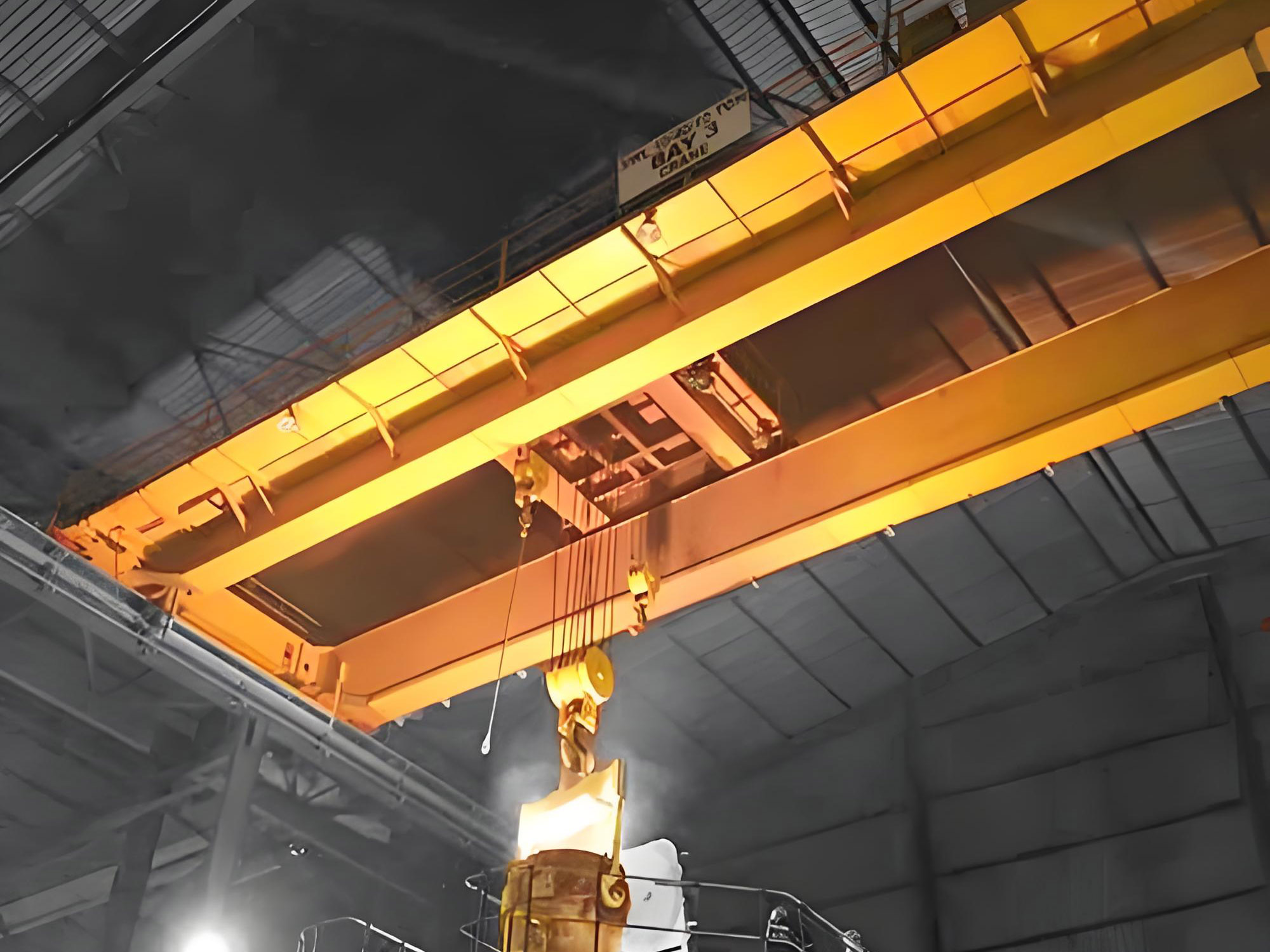

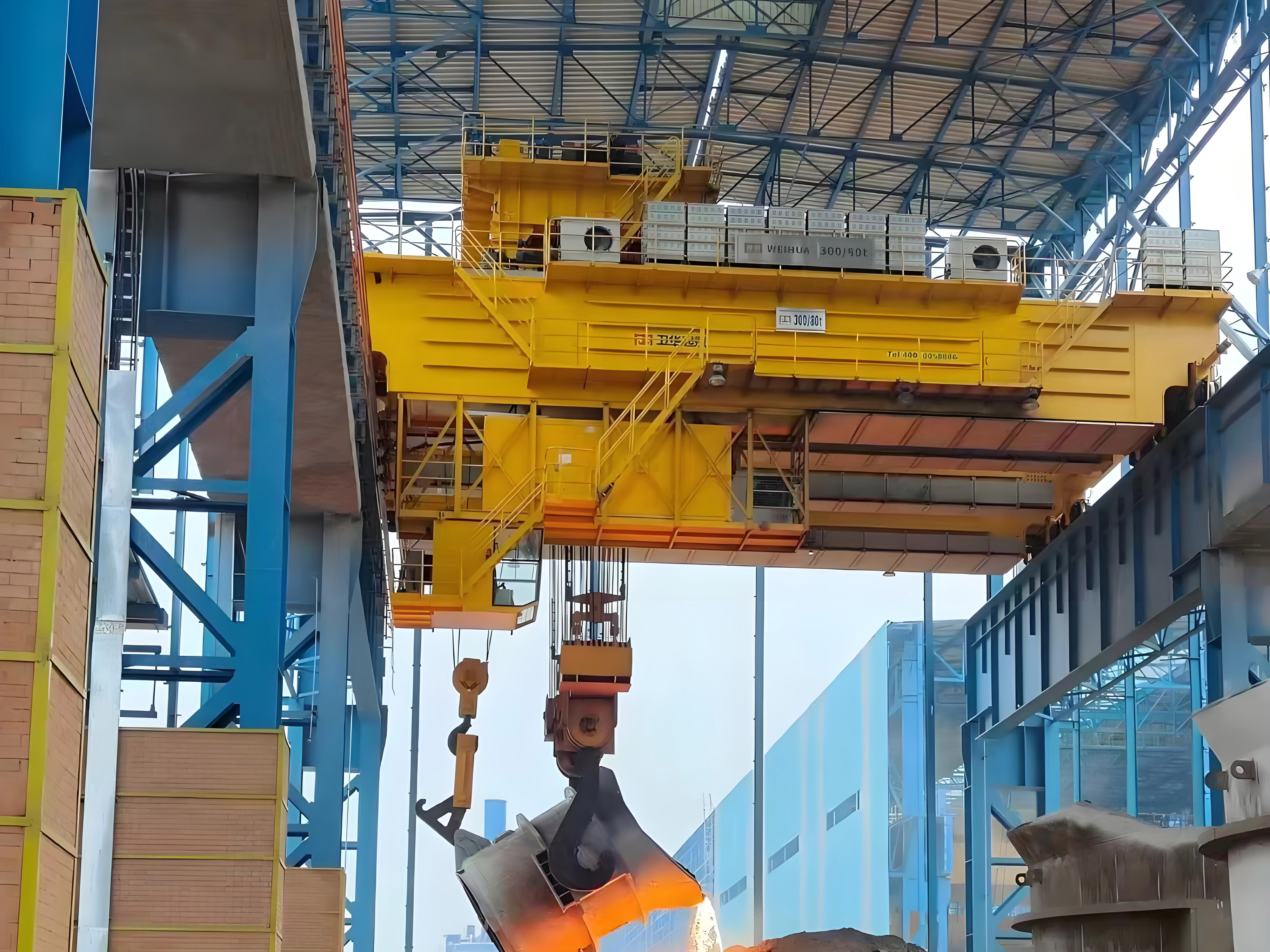

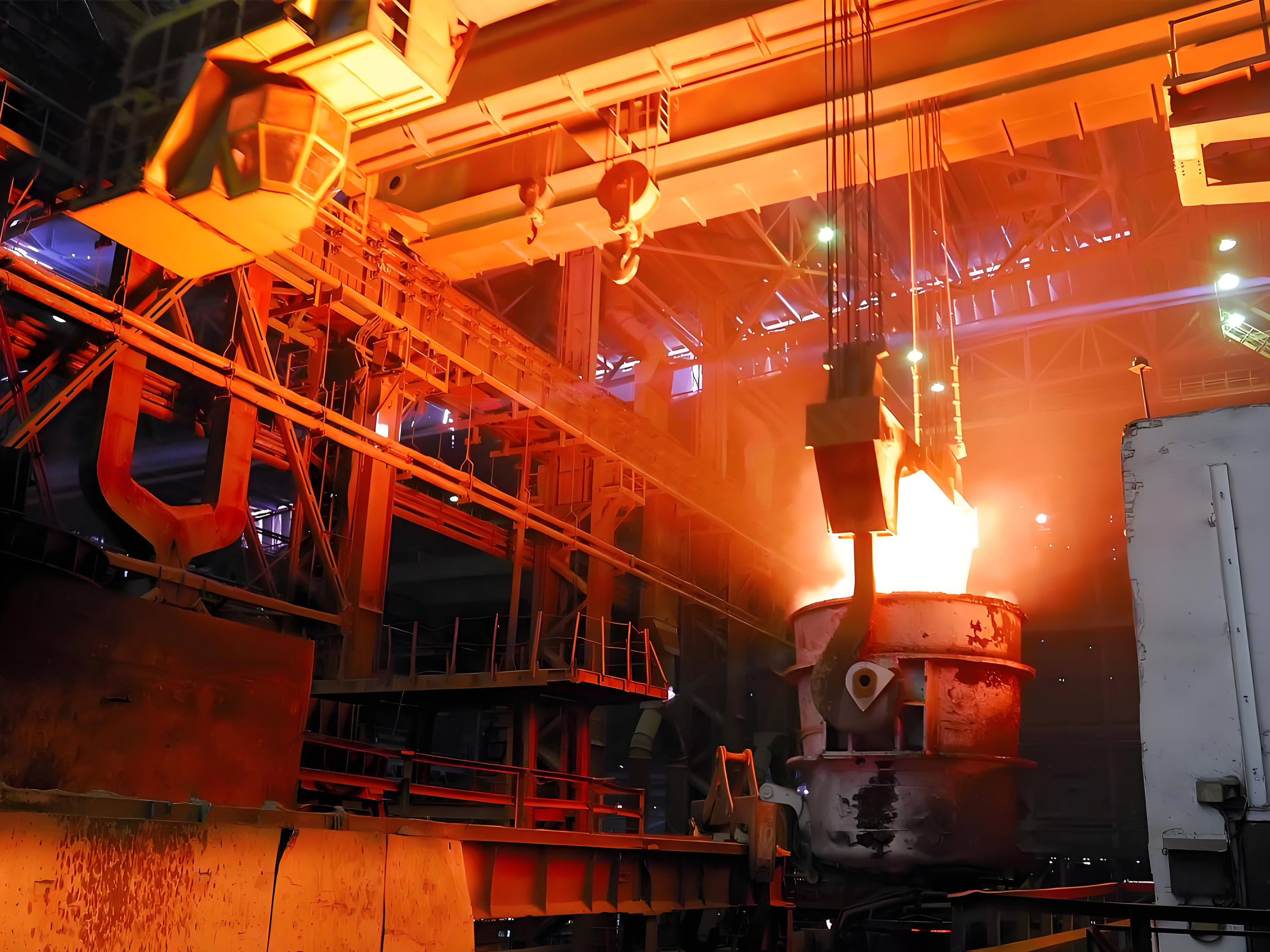

Applications: Ladle cranes (ladle handling cranes or casting ladle crane) are used to transport molten steel ladles in foundries and steel mills. ect.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
| Techinical Specifications Part 1 | |||||||||
| Lifting Capacity | t | 100/32 Double Girder | 100/32 Four Girders | 125/32 Double Girder | 125/32 Four Girders | ||||
| Span | m | 19.5~28.5 | 19~28 | 19.5~28.5 | 19~28 | ||||
| Lifting Height | m | 20/22 | 20/22 | 20/22 | 20/22 | ||||
| Work Duty | A7 | ||||||||
| Main Lifting Speed | m/min | 7.5 | 7.5 | 7.5 | 7.5 | ||||
| Vice Lifting Speed | m/min | 10.5 | 12 | 10.5 | 12 | ||||
| Crane Traveling Speed | m/min | 38 | 32.5/37.4 | 38 | 38/37.4 | ||||
| Trolley Traveling Speed | m/min | 68 | 78 | 79.7 | 79.7 | ||||
| Power | KW | 393 | 426.5 | 479 | 484.5 | ||||
| Track | QU120 | ||||||||
| Lifting Capacity | t | 200/50 Four Girders | 225/65 Four Girders | 240/75 Four Girders | 280/75 Four Girders | 320/80 Four Girders | |||||
| Span | m | 28 | 27 | 24 | 21 | 24.5 | |||||
| Lifting Height | m | 26 | 28 | 31 | 24/26 | 28/32 | |||||
| Work Duty | A7 | ||||||||||
| Main Lifting Speed | m/min | 8 | 8 | 10 | 10 | 9 | |||||
| Vice Lifting Speed | m/min | 9.3 | 10 | 10.5 | 10.5 | 10 | |||||
| Crane Traveling Speed | m/min | 40 | 40/38 | 38/40 | 36/39 | 36/39 | |||||
| Trolley Traveling Speed | m/min | 86 | 87 | 87 | 76 | 63 | |||||
| Power | KW | -- | -- | -- | -- | ||||||
| Track | QU120 | ||||||||||
Feature
Bringing convenience to our customers, promoting their working efficiency and decreasing your costs is our long commitment to the crane industry.
Mother-child trolley to realize the unmanned automatic hanging ladle and save the cost.
The overall design is with lightweight and compact structure.
Low height, light self-weight, small hook limit, large working range.
High quality parts, durable, safe and reliable.
Less maintenance and repair costs.
Small total crane power and low energy consumption.
Case:
FAQ:
01How do I choose the right ladle handling crane?
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Ladle Handling Crane.
02What are the application scenarios of ladle handling crane?
Ladle cranes (ladle handling cranes or casting ladle crane) are used to transport molten steel ladles in foundries and steel mills.
