Introduction

A slab and billet crane is a highly maneuverable electric overhead traveling (EOT) crane that transports large pieces of hot, soft metal - also known as slabs and billets - from the melt shop to its next destination. Because it is so hazardous, the melt shop is usually some distance away from other production locations. The crane feeds the slabs and billets into shaping rollers, takes the metal to be reheated in another furnace before shaping, moves the steel that has been shaped to another conveyor for further processing or delivers it to a storage area.

A Nucleon slab and billet crane is designed move the long distances from melt shop to rolling mill to storage quickly and safely. To cope with the challenges involved in handling either hot and soft metal or cooler pieces, the crane uses a range of Smart Features such as Sway Control, Slack Rope Prevention and Target Positioning that help operators to perform complex movements easily. It can be tailored to your requirements, all the way up to full automation. Standard lifting capacity for a billet handling application is 40 tons and for slab handling is 120 tons.


Billet crane 1

Billet crane

Applications:  Transports large pieces of hot, soft metal - also known as slabs and billets - from the melt shop to its next destination. ect.

  • OEM and ODM accepted;

  • Lower price at same quality;

  • Drawing provided when need;

  • 24 hours price provided;

  • Customization production, high efficiency;


Specification

Lifting CapacitySpanLifting HeightWork DutyLifting SpeedCrane Traveling SpeedTrolley Traveling SpeedTrack
tmm
m/minm/minm/minQU120
3527.512A71.2~124.2~428.5~85
5037120.95~9.53.8~388~80
6535.5120.78~7.83.8~387.5~75

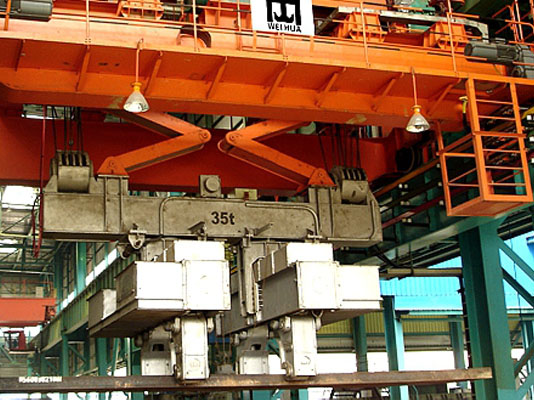

Clamps parallel to the beam:

Lifting CapacitySpanLifting HeightWork DutyLifting SpeedCrane Traveling SpeedTrolley Traveling SpeedTrack
tmm
m/minm/minm/minQU120
3527.512A70.95~9.53.8~388.5~85
5037120.95~9.53.8~388~80
6535.5120.78~7.83.8~387.5~75
















Pictures


Feature

  • Traveling speeds up to150 m/min

  • Electricalcabinets air-conditioned whennecessaryand/or with network braking

  • Up to 8 million duty cycles

  • Special tailored slewing trolleyforheavy-dutyuse

  • Wide range of lifting attachments for different types ofmaterials handling

  • High-visibilitysmart cabin (Optional)Semi- and fully automated functions

  • Smart Features

  • Regenerative braking

FAQ:

  • 01How do I choose the right Billet crane?


  • You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Billet Crane.

  • 02What are the application scenarios of Billet crane?

    Billet Crane is a highly maneuverable electric bridge crane, which is mainly used in steel mills. It usually transports large pieces of hot soft metal, either slabs or billets, from the smelter to its next destination. Melting plants are usually separated from other production sites at some distance because the process is very dangerous.
