Foundry overhead crane

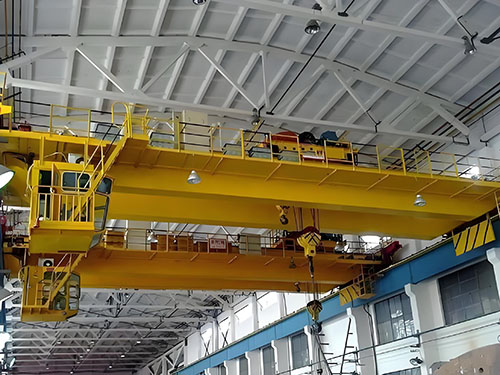

Lifting Capacity(T): 100/32 Double Girder

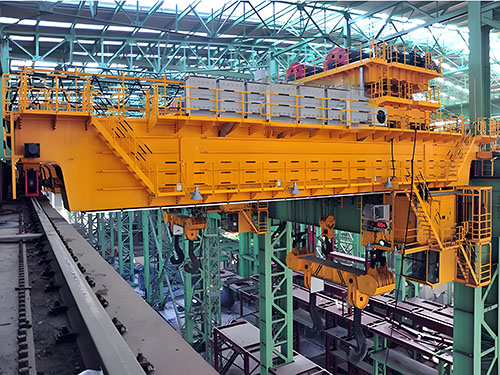

Lifting Capacity(T): 100/32 125/32 Four Girders

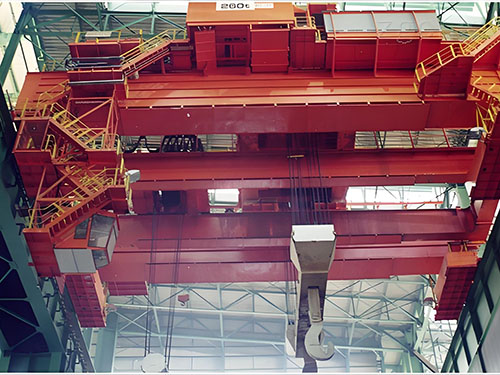

Lifting Capacity(T): 200/50 320/80 Four Girders
Introduction
Foundry overhead crane is a special bridge crane in the process of steel making, It usually includes: Ladle crane, Teeming crane, Charging crane and Tundish Crane. It is mainly used in metal smelting workshop to lift and handle hot molten metal.
Foundry cranes are usually divided into double-girder double-track, four-girder four-track and four-girder six-track structure, of which the double-girder and double-track form is generally used for small tonnage bridge cranes below 160 tons; 100~320 tons can choose four-girder and four-track main casting cranes. If it is a large tonnage of more than 320 tons, it is recommended that you choose a crane structure with four beams and six rails.
Foundry overhead crane
Applications: It is mainly used in metal smelting workshop to lift and handle hot molten metal. ect.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
| Techinical Specifications Part 1 | |||||||||
| Lifting Capacity | t | 100/32 Double Girder | 100/32 Four Girders | 125/32 Double Girder | 125/32 Four Girders | ||||
| Span | m | 19.5~28.5 | 19~28 | 19.5~28.5 | 19~28 | ||||
| Lifting Height | m | 20/22 | 20/22 | 20/22 | 20/22 | ||||
| Work Duty | A7 | ||||||||
| Main Lifting Speed | m/min | 7.5 | 7.5 | 7.5 | 7.5 | ||||
| Vice Lifting Speed | m/min | 10.5 | 12 | 10.5 | 12 | ||||
| Crane Traveling Speed | m/min | 38 | 32.5/37.4 | 38 | 38/37.4 | ||||
| Trolley Traveling Speed | m/min | 68 | 78 | 79.7 | 79.7 | ||||
| Power | KW | 393 | 426.5 | 479 | 484.5 | ||||
| Track | QU120 | ||||||||
| Lifting Capacity | t | 200/50 Four Girders | 225/65 Four Girders | 240/75 Four Girders | 280/75 Four Girders | 320/80 Four Girders | |||||
| Span | m | 28 | 27 | 24 | 21 | 24.5 | |||||
| Lifting Height | m | 26 | 28 | 31 | 24/26 | 28/32 | |||||
| Work Duty | A7 | ||||||||||
| Main Lifting Speed | m/min | 8 | 8 | 10 | 10 | 9 | |||||
| Vice Lifting Speed | m/min | 9.3 | 10 | 10.5 | 10.5 | 10 | |||||
| Crane Traveling Speed | m/min | 40 | 40/38 | 38/40 | 36/39 | 36/39 | |||||
| Trolley Traveling Speed | m/min | 86 | 87 | 87 | 76 | 63 | |||||
| Power | KW | -- | -- | -- | -- | ||||||
| Track | QU120 | ||||||||||
Feature
Because the casting crane works in the harsh environment of high temperature dust, the safety and reliability of the crane are much higher than that of the ordinary bridge crane.
Our casting cranes have a number of safety protection designs on the structure and components:

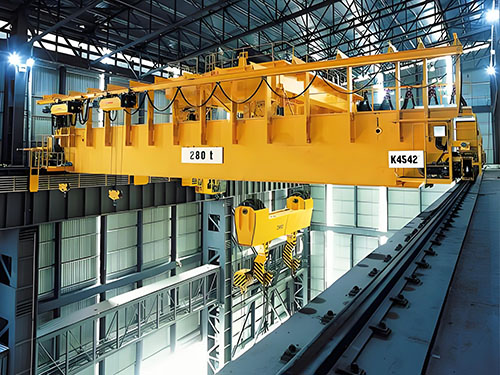

First, the casting crane is mainly used to lift the ladle for pouring molten iron, so it is usually equipped with a main hook and an auxiliary hook.
The main hook is a gantry spreader with two plate hooks, which is used for lifting and handling the ladle; the auxiliary hook is a forging hook or a plate hook, which is used for dumping molten steel, molten iron or other lifting items.
Second, the casting crane takes heat insulation and radiation protection measures for the main beam, sub-main beam, electrical room, etc., in order to reduce the influence of external heat on its baking, because it needs to work continuously at high temperatures.
Third, considering the special working conditions of casting cranes, our motors and power supplies are designed with redundancy. If one of the motors or a group of electronic control devices fails, the other group of driving devices can be used under the rated lifting capacity. Complete a work cycle.
Case:
FAQ:
01How do I choose the right Foundry crane?
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for foundry Crane.
02What are the application scenarios of charging crane?
It usually feeds the electric arc furnace in the charging workshop and can transport the molten iron to the continuous caster or the turret station of the ladle furnace, which is a heavy-duty continuous operation process.
