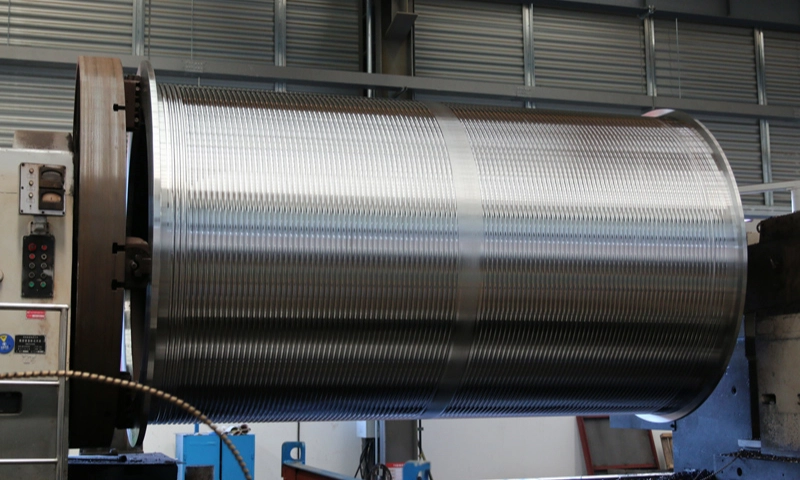

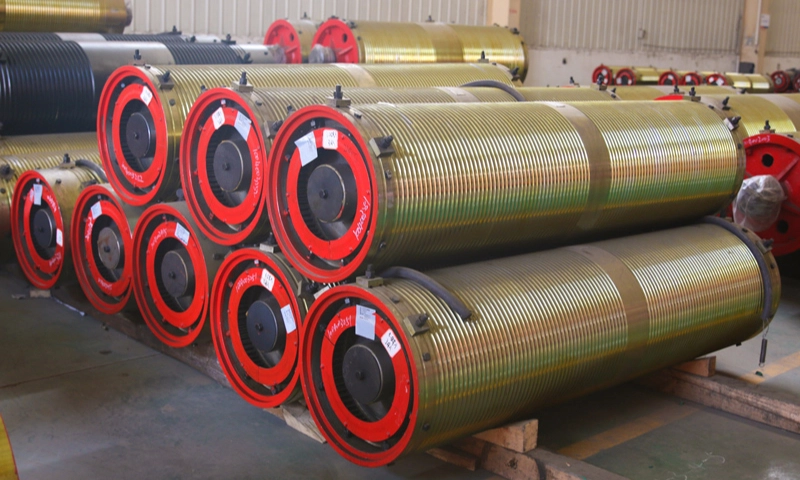

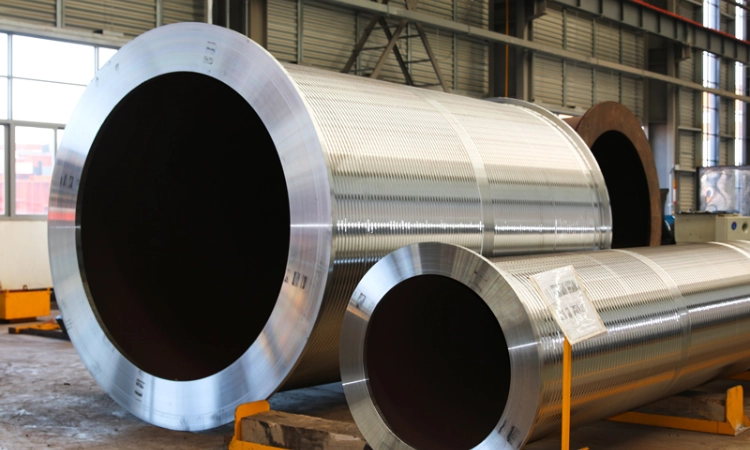

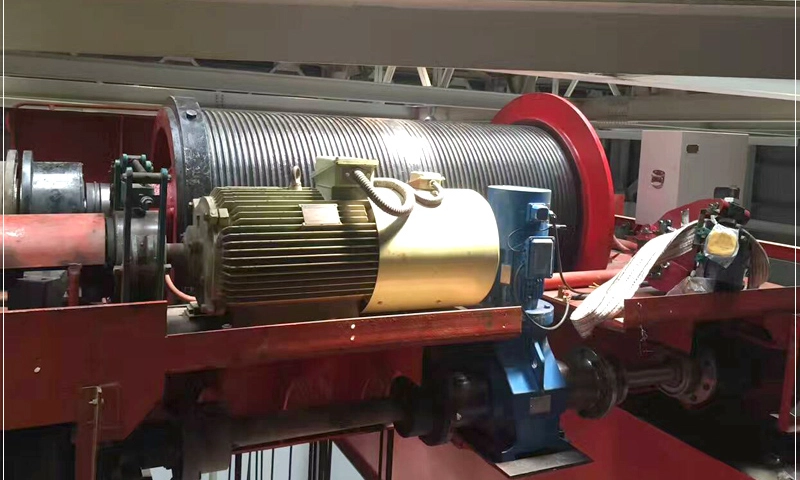

Crane Wire Rope Drum
Diameter: Φ300mm~3000mm
Material: Q235B or Q345B steel
Type: Polyline reel,Universal roll set,Slag discharge drum,New Chinese style reel set
Introduction
The drum group is an important part of the hoisting equipment such as overhead crane, gantry crane, etc. which is used for the wire rope winding of the hoisting mechanism. This drum structure consists of drum body, drum shaft, bearing seat, bearing, etc. The drum material is made by Q235B or Q345B steel.
Polyline reel
The drum coupling structure is adopted, which has large transmission torque, long service life, large bearing torque, large axial compensation error, and high safety performance; it is generally used in the lifting mechanism of metallurgical cranes
Universal roll set
Improve the extrusion, friction and wear caused by the two ends of the wire rope transition between layers, and have a long service life; it is suitable for the lifting mechanism of large-tonnage and high-lift cranes.

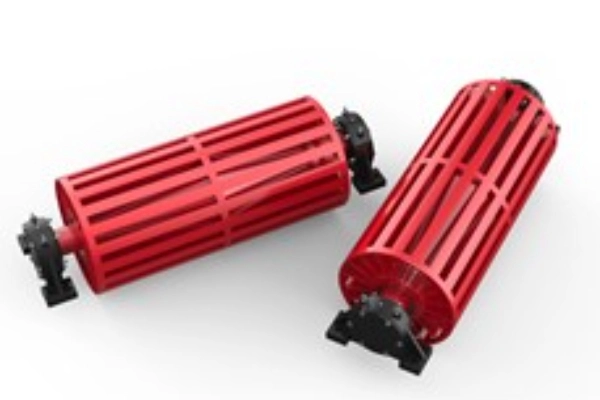

Slag discharge drum
Easy installation and maintenance, high interchangeability, stable operation, long service life, special for belt conveyor slag discharge
New Chinese style reel set
CNC lathe processing is adopted to prolong the service life of the wire rope, and the displacement of heavy objects is small; the wall thickness is uniform, the bearing capacity is strong, the flange and the cylinder weld seam are detected by ultrasonic flaw detection, welding defects are avoided, and the stress is relieved by tempering
Crane Wire Rope Drum
Applications:The drum group is used for the wire rope winding of the hoisting mechanism.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
Feature
New design with compact structure;
Smooth transmission, anti-offset, prolong the life of wire rope;
Weld flaw detection, annealing treatment for drum body;
Large bearing capacity and large torque, which is 15-25% higher than the traditional one.

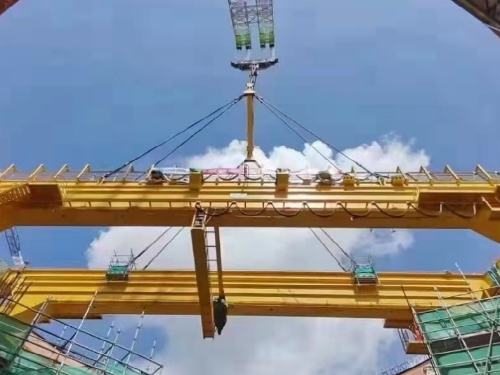

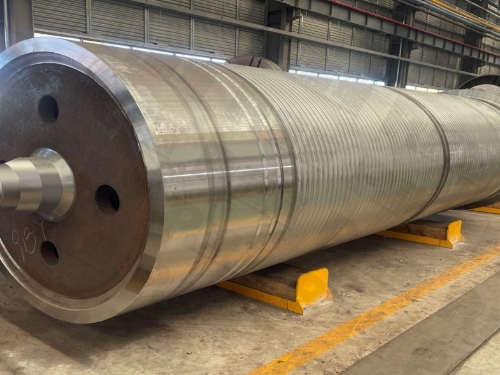

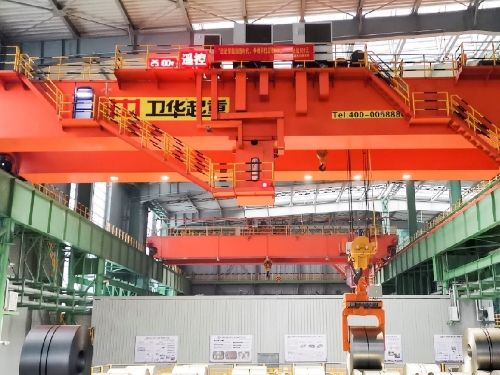

Case:
FAQ:
01What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
02What services can you provide?
We have a complete pre-sales & after-sales service system, including consultation, repair, maintenance, modernization, training, inspection and etc. Our engineers are available overseas.
