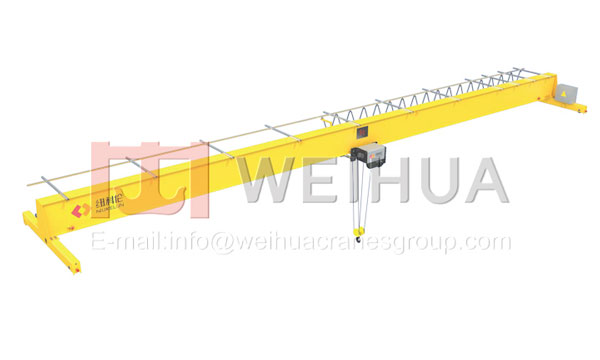

HD Type Electric Travelling Overhead Crane

Introduction

Nucleon HD single girder overhead cranes adopt FEM/DIN standards, feature compact design, low headroom to increase the effective work space and optimize space utilization. So the factory can be designed smaller, more comprehensive functionality and reduce the construction cost and other costs can be saved considerably.

HD Type Electric Travelling Overhead Crane

Specification

Capacity (t)	Span (m)	Lifting height (m)	Working class	Lifting speed (m/min)	Weight		Track	Power rate （kw）	Max wheel load (kN)	DimeDsion (mm)
Capacity (t)	Span (m)	Lifting height (m)	Working class	Lifting speed (m/min)	Trolley（kg)	Kit (kg)	Track	Power rate （kw）	Max wheel load (kN)	H	h	Cl	C2	A	W	B
1	7.5					1700			8.76	618
	10.5					1932		4.07	9.51	618					2000	2674
	13.5	6				2280			10.45	698
	16.5	9	A5	0.8/5	405	2704	P24		11.58	768	354	665	940	100		3174
	19.5	12				3299			13.06	798					3000
	22.5					3921		4.31	14.62	858						3674
	25.5					4514			16.1	928						4174
2	7.5					1811			13.5
	10.5					2081			14.46	708					2000	2674
	13.5	6				2451	P24	4.31	15.54	778
	16.5	9	A5	0.8/5	405	3188	P24		17.47	818	356	665	940	100		3174
	19.5	12				3773			18.93	88$
	22.5					4344		4.67	20.39	968					3000	3674
	25.5					5141	P38		22.38	988						4174
3.2	7.5					1861			18.96	758
	10.5					2098		4.31	20.11	758					2000	2674
	13.5	6				2687	P24		21.85	808
	16.5	9	A5	0.8/5	405	3344	P24		23.51	908	356	665	940	100		3174
	19.5	12				4121			25.45	948
	22.5					4745		4.67	27.06	1028					3000	3674
	25.5					6164	P38		30.6	1178						4174

Feature

Crane girders and end beams made by advanced box sections with maximum rigidity.
The hoist adopts DEM design standard with Germany ABM and SEW drive unit making the crane compete structure, easy operation, high safety and reliability, to reduce noise and energy conservation.
Two hoisting speed and variable frequency drive speeds for cross travel and long travel improves material handling process, reducing the low-sway load motions.
High safety. Overload limit switch Italy G.G.limit switch for hoisting, cross travelling and long travelling provide safety hoisting and travelling. Standard F Class with Temperature Rise B Class Insulation protection and IP54 protection.
High reliability. Security and high efficiency electric components (ABB, SIEMENS, Schneider) ensure the durability and reliability.
The whole crane systems adopt maintenance free design with small vulnerability and convenient maintenance. The overall technical level reaches advanced level of global crane industry.
The crane is widely used for all working conditions, especially suitable for precision machining workshops, high precision assembly workshop, handling the precious and dangerous goods.

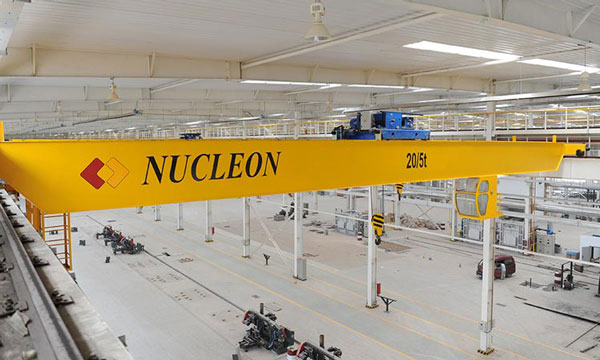

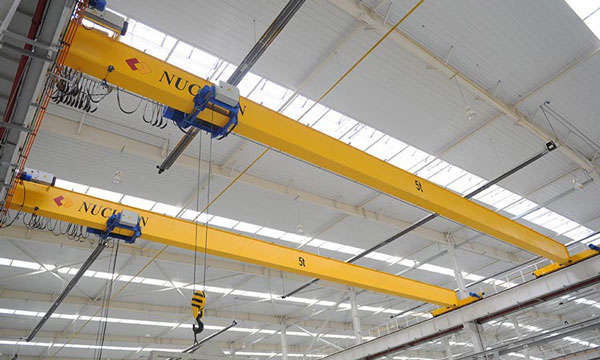

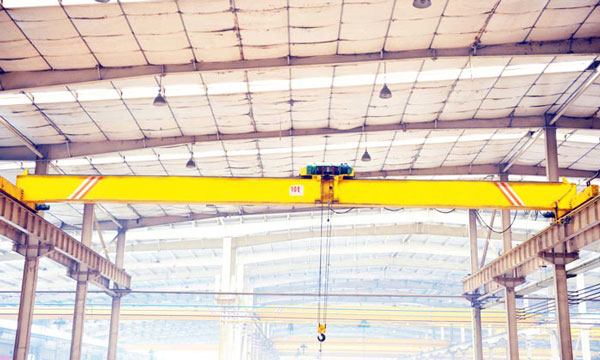

Case:
