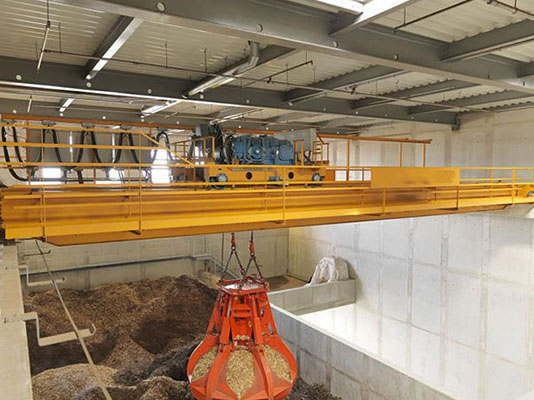

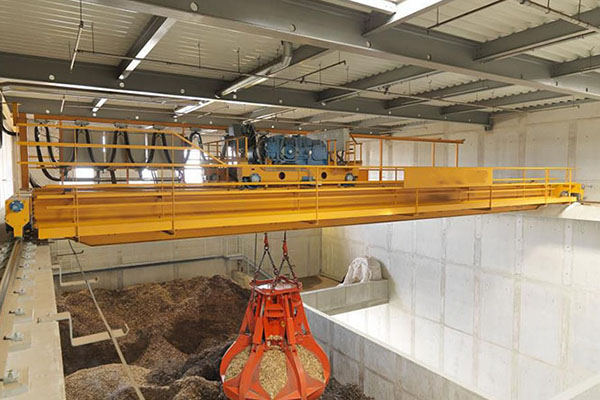

Grab overhead crane
Capacity : 5-50t
Span : 5-31.5m
Lifting height ： 6-30m
Work level : A5,A6,A7,A8
Introduction
Our grab cranes are designed for efficient handling of bulk materials like coal, ore, sand, grain, and waste. Equipped with durable mechanical, electric or hydraulic grab buckets, they ensure smooth and reliable movement of heavy bulk materials in steel manufacturing, mining, ports, warehouses, and recycling facilities.
Overhead grab cranes operate on elevated runways and are typically used indoors or in covered workspaces. They consist of a bridge, trolley, hoist, and grab mechanism, and can operate in tight spaces without requiring additional floor area.
Grab overhead crane
Applications: Our grab cranes are designed for efficient handling of bulk materials like coal, ore, sand, grain, and waste. ect.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
Grab Overhead Crane Specifications
| Technical Parameter of Single Girder Grab Overhead Crane | |||||
|---|---|---|---|---|---|
| Capacity | t | 2 | 3 | 5 | 10 |
| Span | S(m) | 4.5-28.5 | 4.5-28.5 | 4.5-28.5 | 4.5-28.5 |
| Lifting height | m | 6~16 | 6~16 | 6~16 | 6~13 |
| Lifting speed | m/min | 16 | 16 | 16 | 14 |
| Trolley speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) |
| Crane speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) |
| Grab volume | m³ | 0.5 | 0.5 | 0.75 | 1 |
| Work duty | A3~A4 | A3~A4 | A3~A4 | A3~A4 | |
| Track type | P18 P24 | P24 | P24 | P24 P30 | |

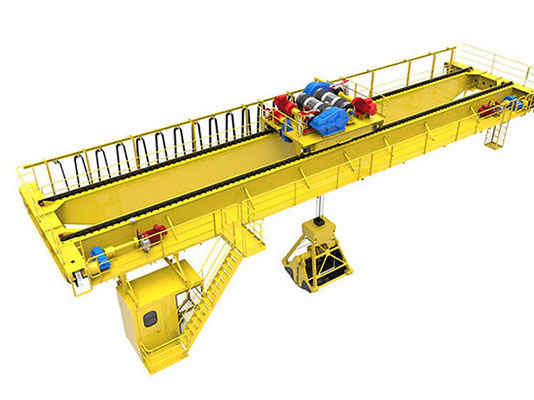

| Technical Parameter of Double Girder Grab Bucket Bridge Crane | |||||
|---|---|---|---|---|---|
| Capacity | t | 5 | 10 | 16 | 20 |
| Span | S(m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 |
| Lifting height | m | 6~18 | 6~18 | 6~26 | 6~26 |
| Lifting speed | m/min | 39.3 | 39.3 | 32.7 | 30.7 |
| Trolley speed | m/min | 44.6 | 31.7 | 31.1 | 31.1 |
| Crane speed | m/min | 93.6 | 86.5 | 75.1 | 76.9 |
| Work duty | A5~A7 | A5~A7 | A5~A7 | A5~A7 | |
| Track type | P43 QU70 | P43 QU70 | QU70 | QU70 | |
Feature
Adopt international leading anti swing control technology;
Advanced and precise positioning technology;
Weighing management system and communication technology;
Control technology of hydraulic grab lifting while grasping;
Fault self diagnosis and remote monitoring and upgrading technology;

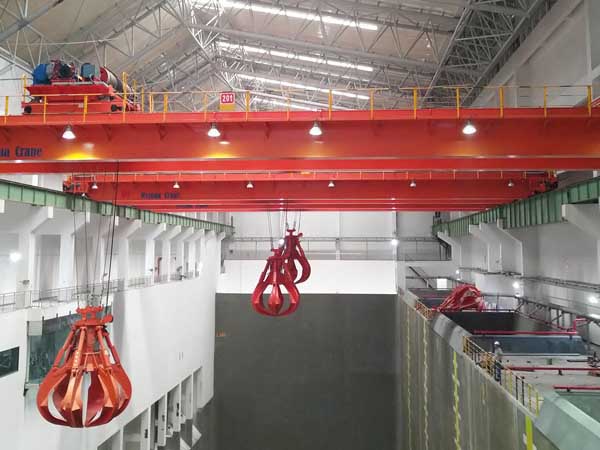

Intelligent garbage level height judgment technology (Fully automatic control);
Vector frequency control technology, siemens PLC control technology, CMS intelligent remote service management system, real-time monitoring equipment operation.
The garbage crane also has high requirements for the cable. The cable itself needs to have excellent performance such as wear resistance, oil resistance, cold resistance, tensile strength, torsion resistance, hydrolysis resistance and corrosion resistance.
Case:
FAQ:
01How do I choose the right Grab overhead crane?
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for grab overhead crane.
02What are the application scenarios of Goliath gantry crane?
Our grab cranes are designed for efficient handling of bulk materials like coal, ore, sand, grain, and waste. Equipped with durable mechanical, electric or hydraulic grab buckets, they ensure smooth and reliable movement of heavy bulk materials in steel manufacturing, mining, ports, warehouses, and recycling facilities.
