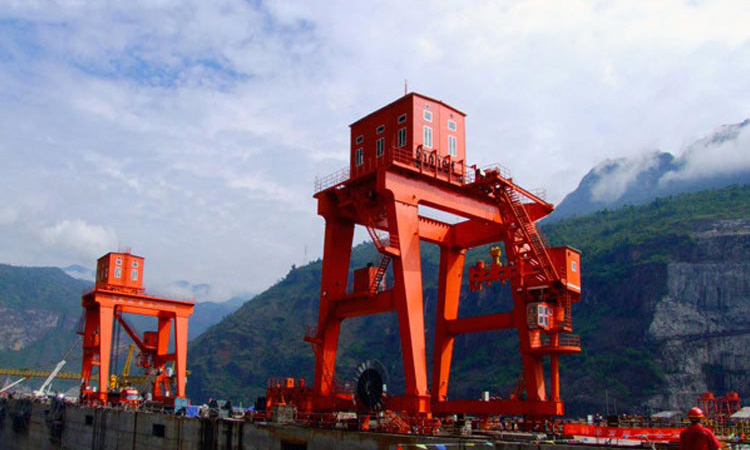

Dam Top Gantry Crane
Product Name: Dam Top Gantry Crane
Lifting Capacity: 2*630kn
Span: 4.5m
Lifting Height: 28m
Introduction
One-way dam top gantry crane is installed on the top of the dam, and the crane can move along the direction of the dam body.The multihole water gate on the same center line can be opened and closed.Most are used to open and close emergency maintenance gates and tail water gate. Two-way and two-way double rotary dam top gantry crane along the direction of the dam body movement, the trolley winch along the direction of the water flow movement.Generally equipped with multiple sets of gripping beam, can be on the dam on different center line of the porous gate and sluice opening and closing.The upper or lower legs of the gantry crane are equipped with rotary cranes, each crane has a rotary radius of 180°, which can assist the transportation and installation of equipment on the dam.
Dam Top Gantry Crane
Applications: Dam top gantry cranes are used to open and close emergency maintenance gates and tail water gate. ect.
OEM and ODM accepted;
Lower price at same quality;
Drawing provided when need;
24 hours price provided;
Customization production, high efficiency;
Specification
| Parameters of Hydropower Station gantry Crane | |||||||
|---|---|---|---|---|---|---|---|
item | value | ||||||
Feature | Gantry Crane | ||||||
Applicable Industries | Construction works , hydropower station | ||||||
Showroom Location | Peru, Indonesia, Kenya, Argentina, South Korea, Colombia, Algeria, Bangladesh, Kyrgyzstan | ||||||
Video outgoing-inspection | Provided | ||||||
Machinery Test Report | Provided | ||||||
Marketing Type | New Product 2022 | ||||||
Warranty of core components | 1 Year | ||||||
Core Components | Gearbox, Motor, Gear, Lifting platform, Operating platform, Gantry | ||||||
Condition | New | ||||||
Application | Outdoor | ||||||
Rated Loading Capacity | 125 KG, 350 KG, 100 kg, 200 Kg, 30 Ton | ||||||
Max. Lifting Height | Other | ||||||
Span | 18-35m | ||||||
Place of Origin | Henan, China | ||||||
Brand Name | HY Crane | ||||||
Warranty | 5 Year | ||||||
Weight (KG) | 350000kg | ||||||
Feature
Large opening and closing force, suitable for the opening and closing of the gate of large hydropower station;
The crane moves along the direction of the dam body and the trolley winch moves along the direction of the water flow.
Double rotary mechanism, the working range of the gantry crane increases
It is easy to operate and maintain, and can realize field and remote control operation.

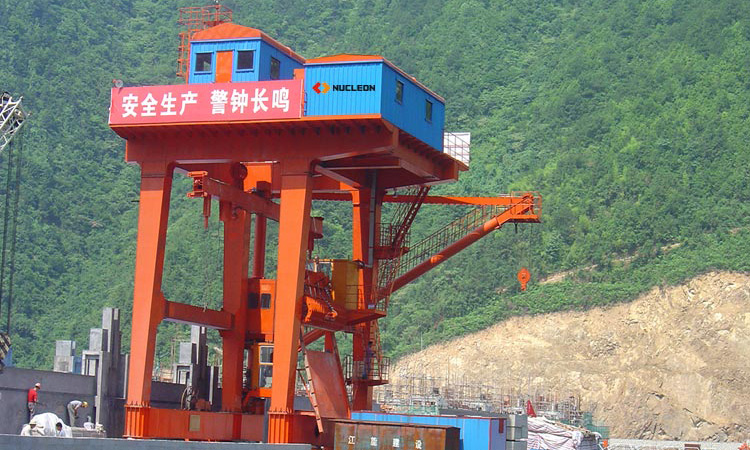

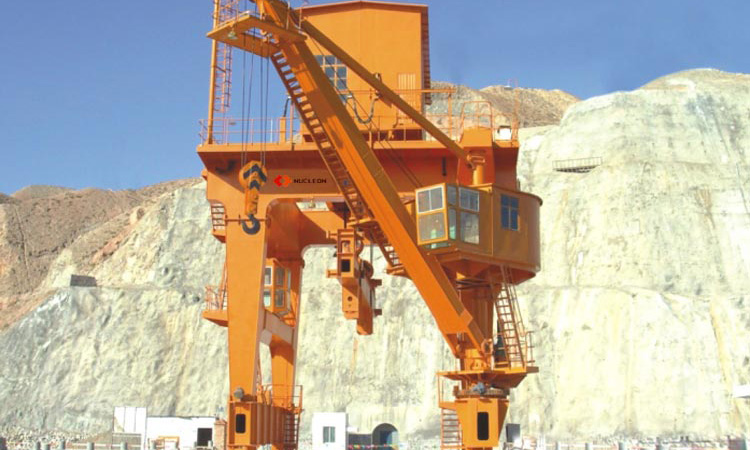

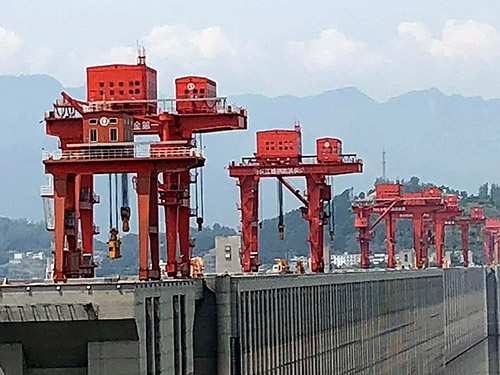

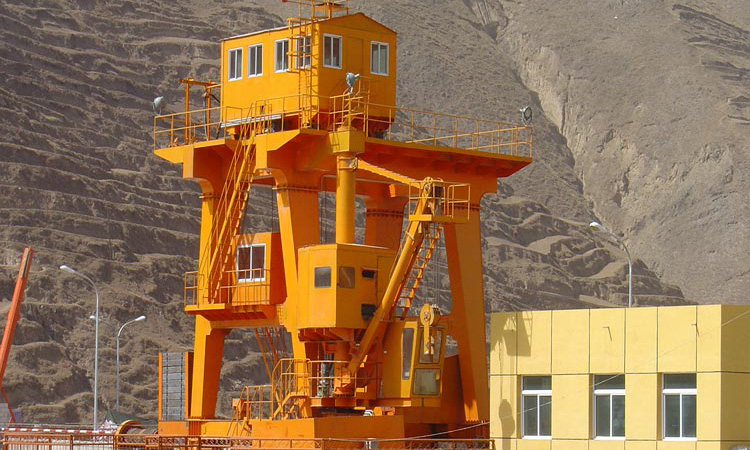

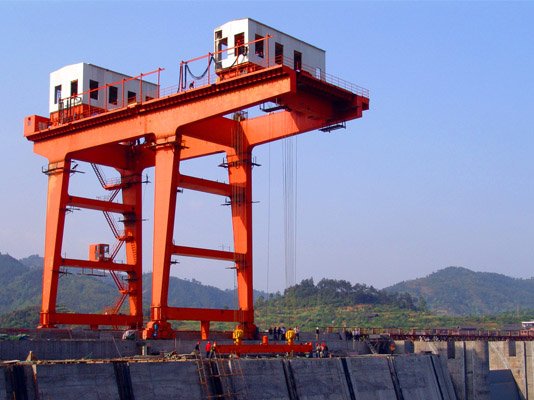

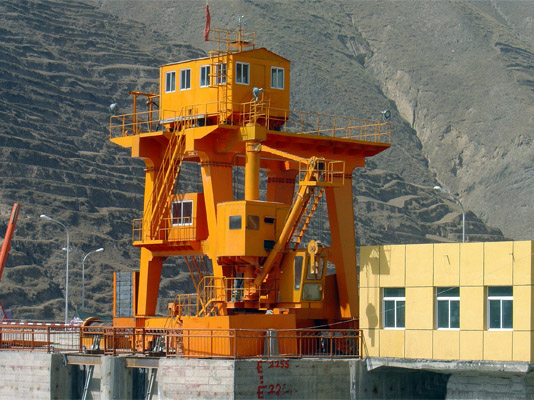

Case:
FAQ:
01How do I choose the right dam top gantry crane?
You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for dam top gantry Crane.
02What are the application scenarios of dam top ganry crane?
Dam top gantry crane is employed to lift floodgate, Hydro-generating unit and trash rack on dams. The working area is a line or belt area along its running rails.
