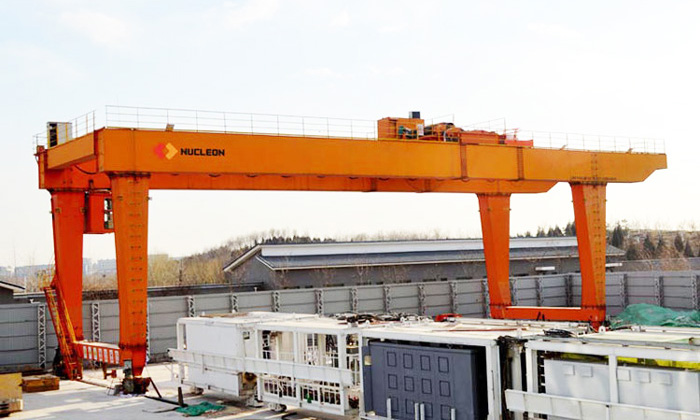

Gantry Crane for Shield

Introduction

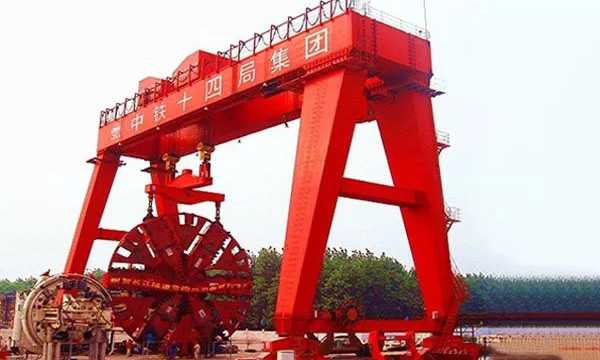

The gantry crane for shield is mainly used for the installation of the cutter head and the shield of the underground non-excavation equipment shield machine, and the lifting of the tunnel support tube during the construction process.

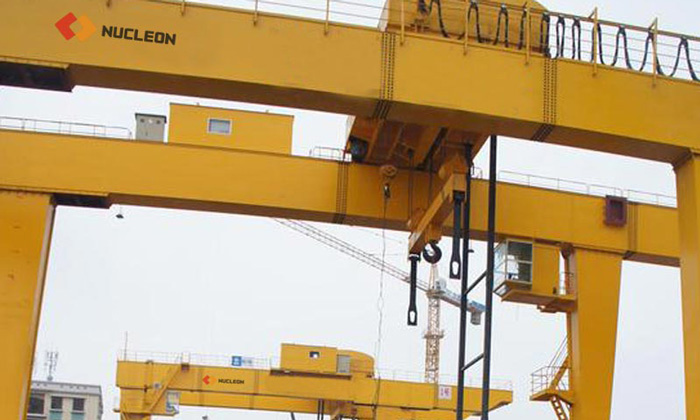

The gantry crane for shield uses a special spreader, and the spreader can be rotated 360 degrees. Suitable for installation of different angles of the cutter head. The utility model adopts a double trolley structure, and the two trolleys can be linked together to lift the cutter cutter disc, and the lift pipe can also be separately operated. When there is a large lifting tonnage, the lifting adopts open gear transmission, which reduces the cost of equipment.

Gantry Crane for Shield

Specification

Lifting capacity		t	400
Working level			A3
Span		m	33		34
Lifting height	Main lifting	m	24（up rail） /23（under rail）		24（up rail） /23（under rail）
	Deputy lifting		22（up rail） /26（under rail）		22（up rail） /26（under rail）
Speed	Main lifting	m/min	0.09~0.9		0.09~0.9
	Deputy lifting		7		7
	Crane travelling		1.6~16		1.6~16
	Crab travelling		1.15~11.5		1.15~11.5
Dimensions	L1	mm	2500
	L2		3500
	H1		3196
	H2		22000
	B		14000
	B1		22800
	b1		1920
	b2		1250
	W		4500
	D		6000
Max. wheel load		KN	406	415
Rail recommended			QU100
Power			Three-phase AC 50Hz 380V
Spreader rotation angle		°	±90°
Cutter diameter		m	15

Feature

The trolley of this gantry crane is a rotating disc adapts to the demand of different digging direction with flexible operation;

The professional sling with 360°rotation, is suitable for the installation of the cutter head from different angles;

PLC frequency conversion adjustment system makes it easy to control every mechanism;

The hoisting adopts open gear to drive, which saves the cost.

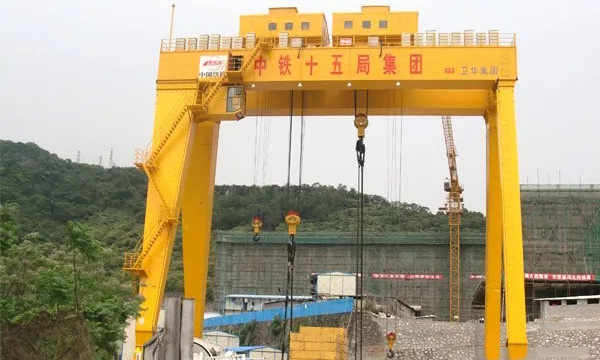

Case:
